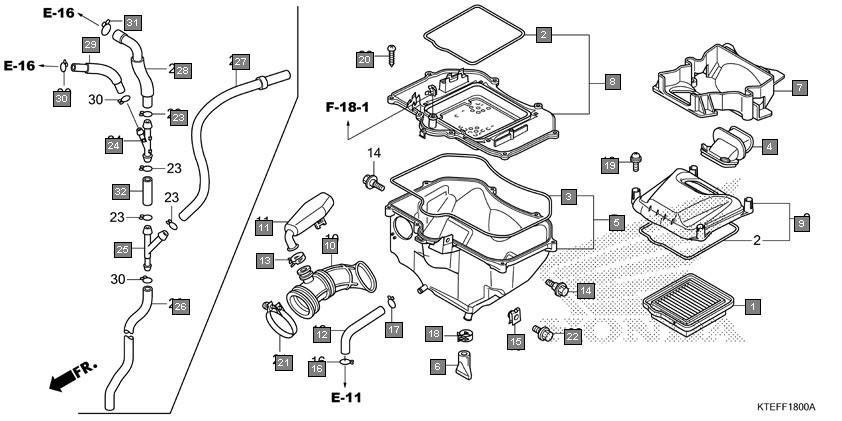

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17211KTE651 | ELEMENT COMP., AIR CLEANER | 1 |
2 | 17214KTE910 | SEAL B, AIR CLEANER | 2 |
3 | 17215KSP900 | SEAL A, AIR CLEANER | 1 |
4 | 17219K67930 | DUCT, AIR CLEANER | 1 |
5 | 17225KTE651 | CASE SUB ASSY., AIR CLEANER | 1 |
6 | 17227KTE910 | TUBE, VINYL, 11X15X40 | 1 |
7 | 17234KTE910 | COVER, AIR CLEANER DUCT | 1 |
8 | 17235KTED00 | HOLDER SUB ASSY., AIR CLEANER | 1 |
9 | 17245KTE651 | COVER SUB ASSY., AIR CLEANER | 1 |
10 | 17253K67930 | TUBE, AIR CLEANER CONNECTING | 1 |
11 | 17311KTE911 | RESONATOR | 1 |
12 | 17371KTED00 | TUBE, BREATHER | 1 |
13 | 19509GE2003 | CLAMP, TUBE(D19) | 1 |
14 | 90111162000 | BOLT, FLANGE, 6MM | 2 |
15 | 90320747000 | NUT, SPRING, 6MM | 1 |
16 | 90651KM9000 | CLIP, TUBE(B14) | 1 |
17 | 90651MK3780 | CLIP, TUBE(B12.5) | 1 |
18 | 91406KFN850 | CLAMP, TUBE(D14.5) | 1 |
19 | 938930501600 | SCREW-WASHER, 5X16 | 4 |
20 | 9390325480 | SCREW, TAPPING, 5X20 | 8 |
21 | 9501854251 | BAND, AIR CLEANER CONNECTING TUBE(54) | 1 |
22 | 957010601000 | BOLT, FLANGE, 6X10 | 1 |
23 | 16163GHB600 | CLIP, TUBE | 4 |
24 | 16180K43900 | JOINT A, 3WAY | 1 |
25 | 16181K43900 | JOINT B, 3WAY | 1 |
26 | 16197KTED00 | TUBE, DRAIN | 1 |
27 | 16198KTED00 | TUBE B, AIR VENT | 1 |
28 | 16199KTED00 | TUBE A, AIR VENT | 1 |
29 | 16956KTED00 | TUBE C, AIR VENT | 1 |
30 | 9500202089 | CLIP, TUBE(B8) | 3 |
31 | 9500202100 | CLIP, TUBE(B10) | 1 |
32 | 950055005050 | TUBE, 5X50(95005-50001-50M) | 1 |
