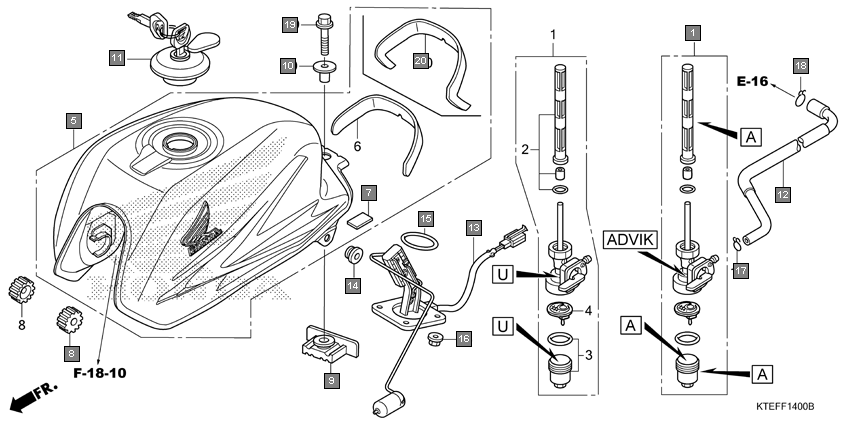

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 16950KTED10 | COCK ASSY., FUEL | 1 |
2 | 17500KTED80ZG | TANK ASSY., FUEL(WL) *TYPE1* | 1 |
3 | 17500KTED80ZB | TANK ASSY., FUEL(WL) *TYPE6* | 1 |
4 | 17500KTED80ZE | TANK ASSY., FUEL(WL) *TYPE3* | 1 |
5 | 17500KTED80ZD | TANK ASSY., FUEL(WL) *TYPE4* | 1 |
6 | 17500KTED80ZA | TANK ASSY., FUEL(WL) *TYPE7* | 1 |
7 | 17500KTED80ZF | TANK ASSY., FUEL(WL) *TYPE2* | 1 |
8 | 17500KTED80ZC | TANK ASSY., FUEL(WL) *TYPE5* | 1 |
9 | 17507KTE650 | FILM, TANK PROTECTOR SMALL | 2 |
10 | 17611KFN850 | CUSHION, FR. FUEL TANK | 2 |
11 | 17613KTE910 | RUBBER, FUEL TANK RR. | 1 |
12 | 17614KR3000 | COLLAR, FUEL TANK MOUNTING | 1 |
13 | 17620KTED04 | CAP COMP., FUEL FILLER(SPARK). | 1 |
14 | 17620KTED03 | CAP COMP., FUEL FILLER (JAY USHIN) | 1 |
15 | 17681KTE650 | TUBE, FUEL | 1 |
16 | 37800KTED01 | FUEL UNIT ASSY.(JNS) | 1 |
17 | 83551376000 | GROMMET, SIDE COVER | 2 |
18 | 91305443740 | O-RING, 39.5X5 | 1 |
19 | 9405006000 | NUT, FLANGE, 6MM | 4 |
20 | 90652KWPF00 | CLIP, TUBE(B8) | 1 |
21 | 9500250000 | CLIP, TUBE(C9) | 1 |
22 | 957010802800 | BOLT, FLANGE, 8X28 | 1 |
23 | 17506KTED00 | FILM, TANK PROTECTOR | 1 |
