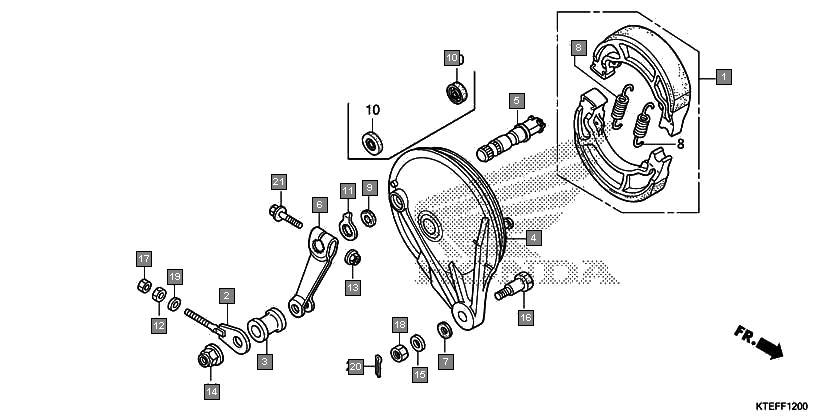

Motorcycles CB Shine CBF125J/K Frame Rear brake panel
Ref.No. Part No. Description Oty
1 06430KTN700 SHOE SET, BRAKE(JB) 1
2 06430KVTD10 SHOE SET, BRAKE(ASK) 1
3 40543KTE910 ADJUSTER COMP., R. CHAIN 1
4 42313KTE910 COLLAR, RR. BRAKE PANEL SIDE 1
5 43100KTEDA0ZA PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC 1
6 43100K63D30ZA PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC 1
7 43141KTEDB0 CAM, RR. BRAKE 1
8 43141KTE670 CAM, RR. BRAKE 1
9 43141KTC900 CAM, RR. BRAKE 1
10 43410KTE670 ARM, RR. BRAKE 1
11 43410KCT690 ARM, RR. BRAKE 1
12 43434ME1670 RUBBER, STOPPER ARM 1
13 45133KCC900 SPRING, FR. BRAKE SHOE (FOR RR.) 2
14 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
15 45134250000 DUST SEAL, BRAKE CAM 1
16 45134KB7005 DUST SEAL, BRAKE CAM(NOK) 2
17 91204KWPD01 OIL SEAL, 14X20X3.2(FENNER) 2
18 91203KPL901 OIL SEAL, 14X20X3.2 2
19 45145KFM900 INDICATOR, FR. BRAKE (FOR RR.) 1
20 90302KBP900 NUT, SPECIAL, 6MM 1
21 90302KST942 NUT, FLANGE, 6MM (LEO FASTENERS) 1
22 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 1
23 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
24 90505425000 WASHER, 8MM 1
25 9281110000 BOLT A, BRAKE STOPPER 1
26 94001060000S NUT, HEX., 6MM 1
27 94001080000S NUT, HEX., 8MM 1
28 9410106000 WASHER, PLAIN, 6MM 1
29 9420120150 PIN, SPLIT, 2.0X15 1
30 957010603500 BOLT, FLANGE, 6X35 1
31 957020603500 BOLT, FLANGE, 6X35 1
