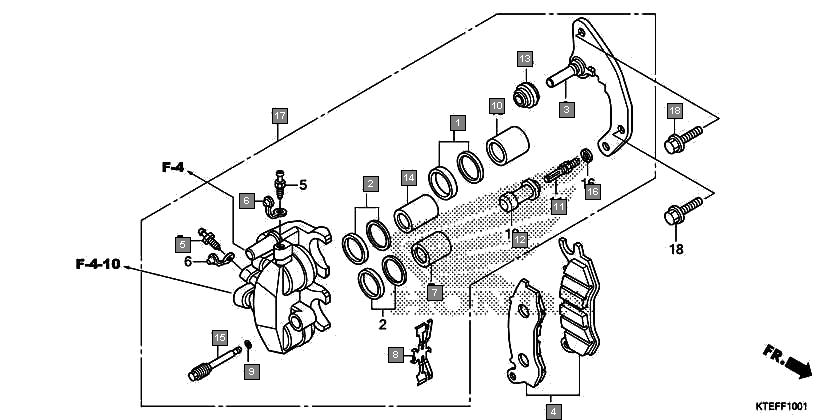

Motorcycles CB Shine CBF125J/K Frame Front brake caliper(cbs)
Ref.No. Part No. Description Oty
1 06451MZ2405 SEAL SET, PISTON 1
2 06451MZ2405 SEAL SET, PISTON 2
3 06453K67951 BRACKET SUB ASSY., R. FR. 1
4 06455K67951 PAD SET, FR. 1
5 43352568003 SCREW, BLEEDER(NISSIN) 2
6 43353461771 CAP, BLEEDER 2
7 45107KPNE21 PISTON A, 22(NISSIN) 1
8 45108KPNE21 SPRING, PAD(NISSIN) 1
9 45111MAJG41 RING, STOPPER 1
10 45131GZ0006 BOLT, PIN 1
11 45132166016 BOOT, PIN BUSH(NISSIN) 1
12 45133MA3006 BOOT B 1
13 45207KPNE21 PISTON B, 22(NISSIN) 1
14 45215KPH951 PIN, HANGER 1
15 45216166006 WASHER, WAVE 1
16 45250K67951 CALIPER SUB ASSY., R. FR. (NISSIN) 1
17 90155KSP900 BOLT, FLANGE, 8X25 2
