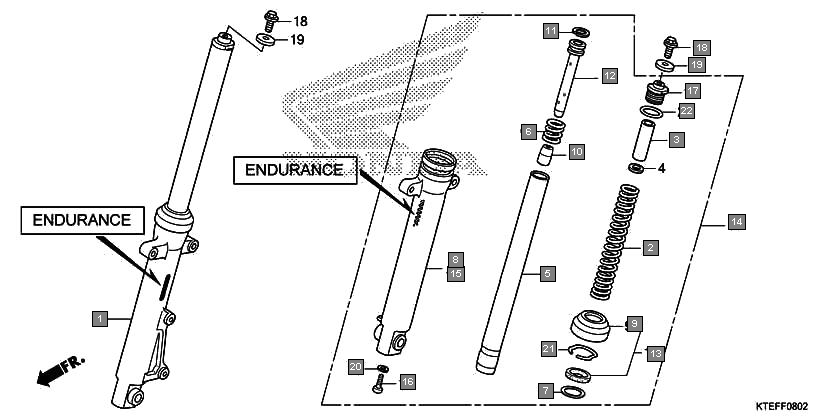

Motorcycles CB Shine CBF125J/K Frame Front fork(endurance)(disk brake)
Ref.No. Part No. Description Oty
1 51400KTEDA4 Fork Assy. Front (R) 1
2 51400KTED92 Fork Assy. Front (R) 1
3 51401KTE602 SPRING, FR. FORK(ETPL) 2
4 51403KTED81 COLLAR, SPRING(ENDURANCE) 2
5 51410KTE602 PIPE COMP., FR. FORK(ETPL) 2
6 51412K23902 SPRING, REBOUND 2
7 51413K63D11 RING, BACK UP 2
8 51420KTE613 Case Fr. Bottom (R) 1
9 51420KTEDA2 Case Fr. Bottom (R) 1
10 51425KTED81 SEAL, DUST(ETPL) 2
11 51432K23902 PIECE, OIL LOCK 2
12 51437K23902 RING, PISTON 2
13 51440KTE602 PIPE, SEAT(ETPL) 2
14 51490KTE603 Seal Set Fr. Fork 2
15 51500KTEDA4 Fork Assy. Front (L) 1
16 51500KTED92 Fork Assy. Front (L) 1
17 51520KTED91 CASE, L. FR. BOTTOM(ENDURANCE). 1
18 90116K23902 BOLT, SOCKET, 8MM 2
19 90123K23902 BOLT A, FR. FORK 2
20 90123KRM860 BOLT, FR. FORK 2
21 90521KSP900 WASHER, 10.3MM 2
22 90544K23902 WASHER, SPECIAL, 8MM 2
23 90651K23902 RING, OIL SEAL STOP 2
24 91351K23902 O-RING 2
25 51490KTED81 SEAL SET, FR. FORK(ENDURANCE) 2
26 51520KTE613 Case Fr. Bottom (L) 1
27 51420KTED91 CASE, R. FR. BOTTOM(ENDURANCE) 1
28 51420KTE673 Case Fr. Bottom (R) 1
29 51425KTE603 Seal Dust 2
