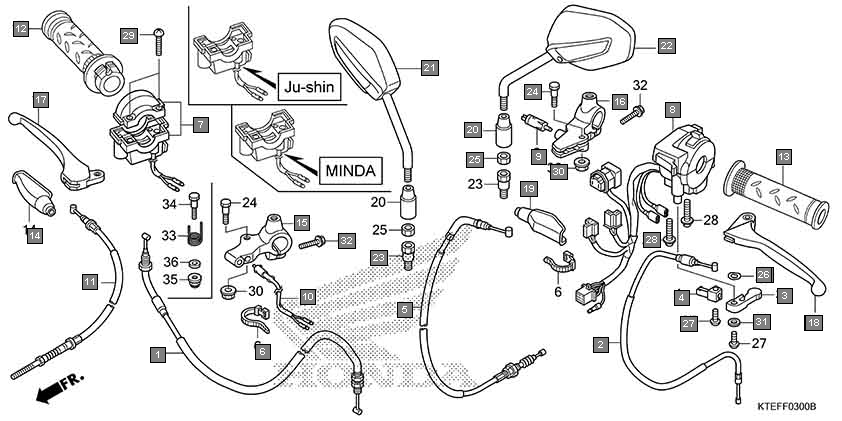

Motorcycles CB Shine CBF125J/K Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 17910KTED82 CABLE COMP., THROTTLE(SEL) 1
2 17910KTED81 CABLE COMP., THROTTLE(HI-LEX) 1
3 17950KTED81 CABLE COMP., CHOKE(HI-LEX) 1
4 17950KTED82 CABLE COMP., CHOKE(SEL) 1
5 17961KTE911 LEVER, CHOKE 1
6 17962KTE910 STOPPER, CABLE 1
7 22870KTED81 CABLE COMP., CLUTCH 1
8 32161KSP920 BAND B1, WIRE 2
9 35150KTE601 SWITCH ASSY., STARTER 1
10 35150KTED01 SWITCH ASSY., START(MINDA) 1
11 35200KTED02 SWITCH ASSY., WINKER(MINDA) 1
12 35200KTED01 SWITCH ASSY., WINKER(JU-SHIN) 1
13 35330KEJ900 SWITCH COMP., FR. LEVER 1
14 35340KTE601 SWITCH ASSY., FR. STOP 1
15 45450KTED81 CABLE COMP., FR. BRAKE 1
16 45450KTEDB1 CABLE COMP., FR. BRAKE 1
17 45450KTED02 CABLE COMP., FR. BRAKE 1
18 53140K38940 GRIP COMP., THROTTLE 1
19 53166KSPA70 GRIP, L. HANDLE 1
20 53171KCC900 COVER, R. HANDLE LEVER 1
21 53171KTEA00 BRACKET, R. HANDLE LEVER 1
22 53171KTEDB0 BRACKET, R. HANDLE LEVER 1
23 53172KTE930 BRACKET, L. HANDLE LEVER 1
24 53175KTEDB0 LEVER COMP., R. HANDLE 1
25 53175KTEA00 LEVER COMP., R. HANDLE 1
26 53178KTEA00 LEVER COMP., L. HANDLE 1
27 53179KTC900 COVER, L. HANDLE LEVER 1
28 88114198D10 CAP, LOCK NUT 2
29 88210K38941ZA MIRROR COMP., R.*NH1* BLACK 1
30 88220K38941ZA MIRROR COMP., L. *NH1*BLACK 1
31 90103K38940 BOLT, ADAPTER, 10MM 2
32 90114428870 BOLT, HANDLE LEVER PIVOT 1
33 90114428870 BOLT, HANDLE LEVER PIVOT 2
34 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 2
35 90442147000 WASHER, WAVE 1
36 90442KTED00 WASHER, WAVE 1
37 93500050100A SCREW, PAN, 5X10 2
38 93500050200G SCREW, PAN, 5X20 2
39 93500050220G SCREW, PAN, 5X22 2
40 9405006000 NUT, FLANGE, 6MM 1
41 9405006000 NUT, FLANGE, 6MM 2
42 9410305000 WASHER, PLAIN, 5MM 1
43 960010602507 BOLT, FLANGE, 6X25 2
44 960010602507 BOLT, FLANGE, 6X25 1
45 53199KTEDB0 SPRING, BRAKE LEVER RETURN 1
46 90115KTEDB0 BOLT, R. HANDLE LEVER PIVOT 1
47 90301KWN901 NUT, U, 5MM 1
48 90502KTEDB0 WASHER, 5MM 1
