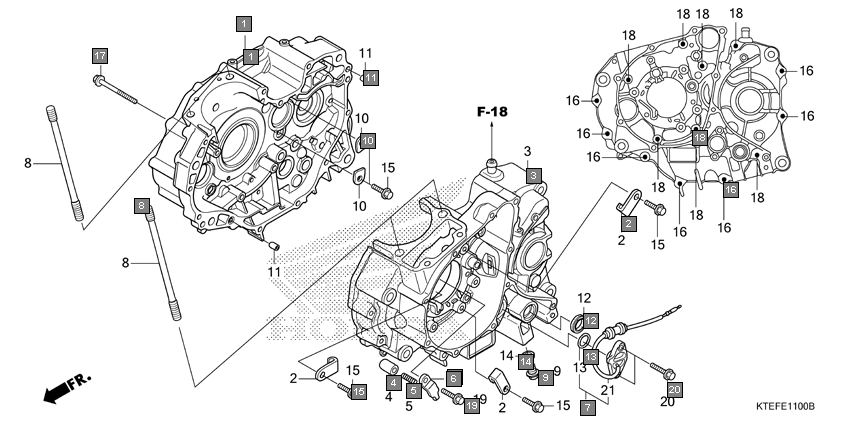

Motorcycles CB Shine CBF125J/K Engine Crankcase
Ref.No. Part No. Description Oty
1 11100KTEA20 CRANKCASE COMP., R. 1
2 11108KTT900 PLATE, L. BEARING SETTING 3
3 11200KTED00 CRANKCASE COMP., L. 1
4 11215KRM840 PLUG, BEARING PUSH 1
5 11216KRM840 SPRING, BEARING PUSH 1
6 11217KRM840 PLATE, BEARING PUSH 1
7 90031KSP910 BOLT, CYLINDER STUD, 8X140 4
8 90131KRM840 BOLT, DRAIN PLUG, 12MM 1
9 90441KRM840 PLATE, BEARING HOLDER 2
10 90702KRM840 DOWEL PIN, 8X14 2
11 91203KSP911 OIL SEAL, 14X22X5(ARAI) 1
12 91305KPH900 O-RING, 19.4X2.3 1
13 9410912000 WASHER, DRAIN PLUG, 12MM 1
14 957010601600 BOLT, FLANGE, 6X16 5
15 957010604000 BOLT, FLANGE, 6X40 7
16 957010604500 BOLT, FLANGE, 6X45 1
17 957010607000 BOLT, FLANGE, 6X70 7
18 960010601800 BOLT, FLANGE, 6X18 1
19 960010602000 BOLT, FLANGE, 6X20 2
