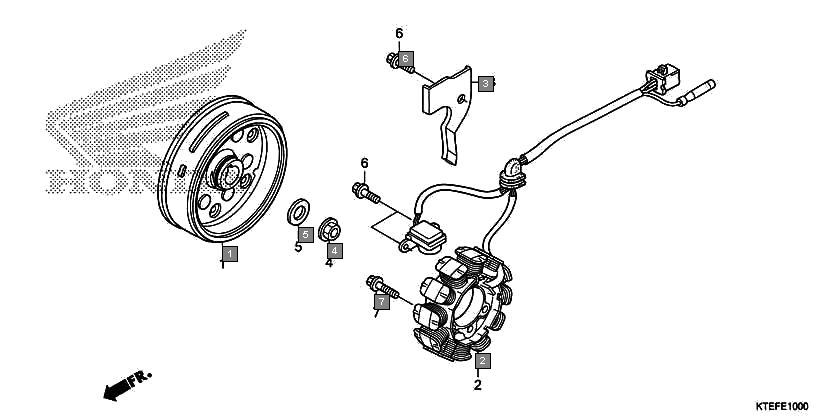

Motorcycles CB Shine CBF125J/K Engine Generator
Ref.No. Part No. Description Oty
1 31110KTED01 FLYWHEEL COMP.(MITSUBA) 1
2 31120KTED01 STATOR COMP.(MITSUBA) 1
3 32111KSP910 CLAMPER, A.C. GENERATOR CORD 1
4 90201KRM840 NUT, FLANGE, 14MM 1
5 90501KPTA00 WASHER, 14.1X29X2.8 1
6 960010601600 BOLT, FLANGE, 6X16 3
7 960010602200 BOLT, FLANGE, 6X22 3
