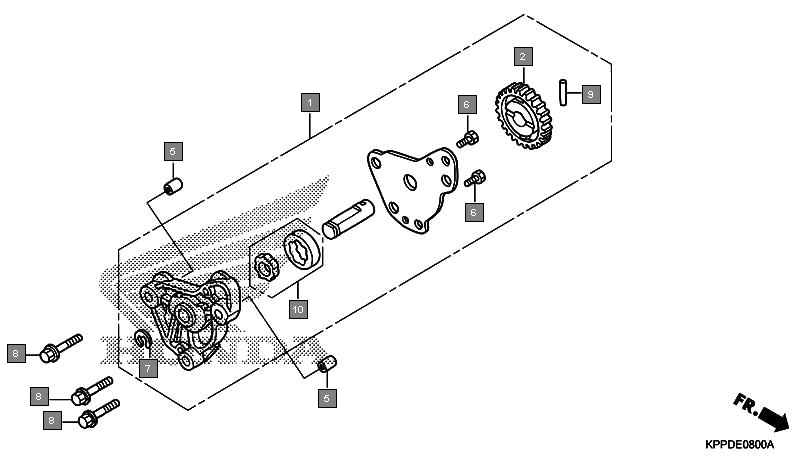

Motorcycles CBR150R CBR150RC Engine Oil pump
Ref.No. Part No. Description Oty
1 15100KPPT00 OIL PUMP ASSY. 1
2 15133KPPT00 GEAR, OIL PUMP DRIVEN(25T) 1
3 90702KFM900 DOWEL PIN, 8X12 2
4 93301050120J BOLT, HEX., 5X12 2
5 9454006018 E-RING, 6MM 1
6 957010603500 BOLT, FLANGE, 6X35 3
7 9622040238 ROLLER, 4X23.8 1
8 15021436000 ROTOR SET, OIL PUMP 1
