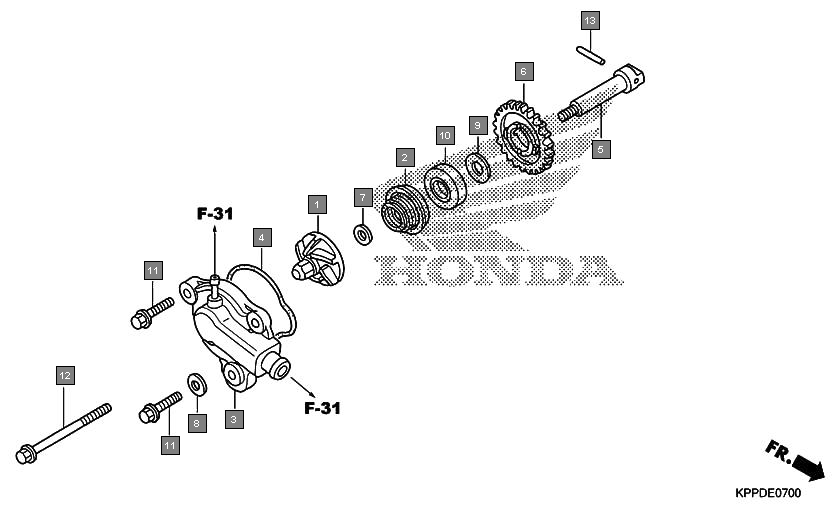

Motorcycles CBR150R CBR150RC Engine Water pump
Ref.No. Part No. Description Oty
1 19215KGH900 IMPELLER, WATER PUMP 1
2 19217P72013 SEAL, MECHANICAL 1
3 19220KTYD30 COVER, WATER PUMP 1
4 19226KGH900 GASKET, WATER PUMP COVER 1
5 19241KGH900 SHAFT, WATER PUMP 1
6 19242KPPT00 GEAR, WATER PUMP DRIVEN(25T) 1
7 90423KW6900 WASHER, 7X13X1.2 1
8 90478700000 WASHER A, 6MM 1
9 90608072000 WASHER, 12MM 1
10 91205KF0003 OIL SEAL, 12X20X5(ARAI) 1
11 960010602200 BOLT, FLANGE, 6X22 2
12 960010606500 BOLT, FLANGE, 6X65 1
13 9622040238 ROLLER, 4X23.8 1
