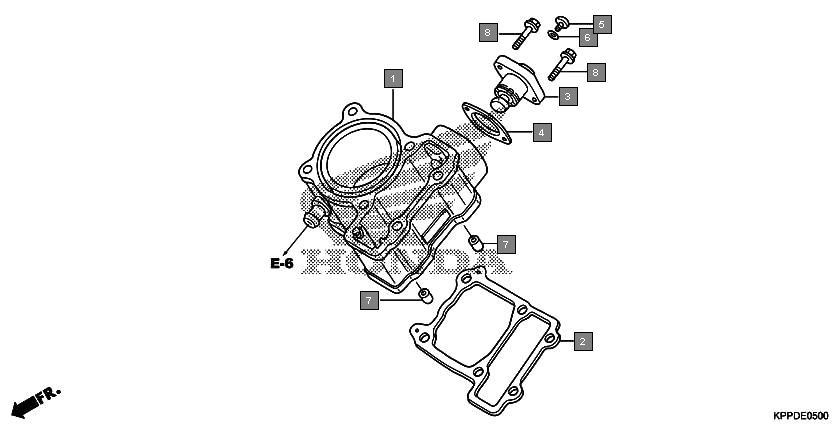

Motorcycles CBR150R CBR150RC Engine Cylinder
Ref.No. Part No. Description Oty
1 12100KPP900 CYLINDER COMP. 1
2 12191KPP901 GASKET, CYLINDER 1
3 14520KPPT01 LIFTER ASSY., TENSIONER 1
4 14560KGH900 GASKET, TENSIONER LIFTER 1
5 90005KY7000 SCREW, PAN, 6X6 1
6 91306MG3000 O-RING, 1.5X9.5 1
7 9430110120 DOWEL PIN, 10X12 2
8 960010602200 BOLT, FLANGE, 6X22 2
