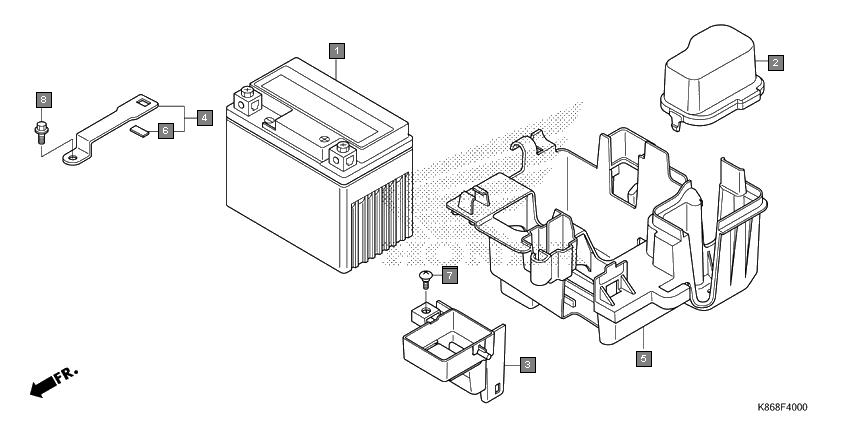

Scooters Grazia SCV125SJ Frame Battery
Ref.No. Part No. Description Oty
1 31500KWPG01 BATTERY(YTZ4(YUASA) 1
2 50325KWPD01 BOX, RELAY UPPER 1
3 50326K86D00 BOX, SPARK UNIT 1
4 50341K86D00 BAND COMP., BATTERY 1
5 50381K86D00 CASE, BATTERY 1
6 50386K24900 CUSHION A, BATTERY 1
7 90115KW7900 SCREW, VISOR SPECIAL SETTING 1
8 957010601208 BOLT, FLANGE, 6X12 1
