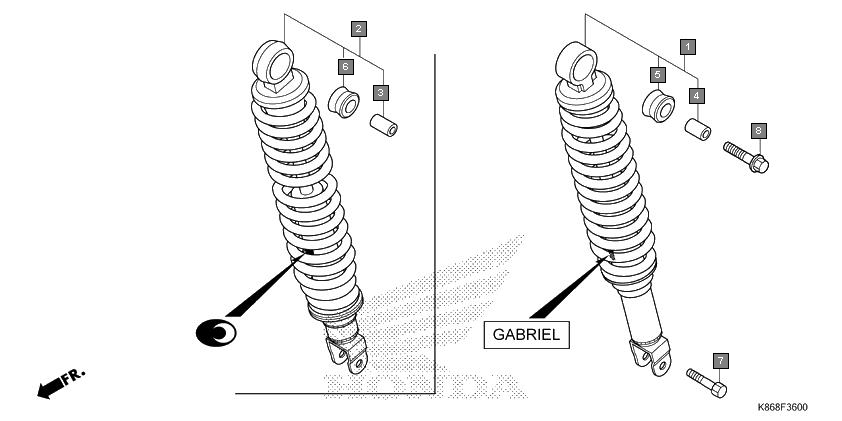

Scooters Grazia SCV125SJ Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400K24G02 CUSHION ASSY., RR.(GABRIEL) 1
2 52400KWPG01 CUSHION ASSY., RR.(ENDURANCE). 1
3 52486K23902 COLLAR, RUBBER BUSH(ENDURANCE) 1
4 52487KWS901 COLLAR, RUBBER BUSH(GABRIEL) 1
5 52489KWS901 BUSH, RUBBER(GABRIEL) 1
6 52495K23902 BUSH, RUBBER(ENDURANCE) 1
7 92201080320A BOLT, HEX., 8X32 1
8 958011003500 BOLT, FLANGE, 10X35 1
