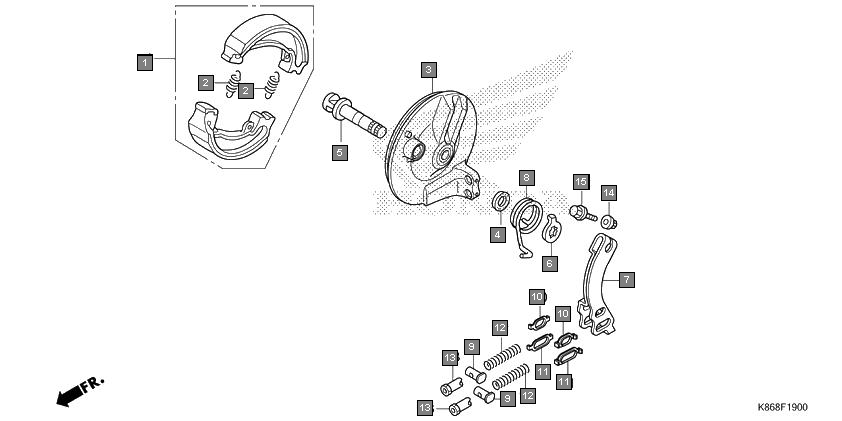

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06430KWP900 | SHOE SET, BRAKE(JB) | 1 |
| 2 | 06430KWPD00 | SHOE SET, BRAKE(ASK) | 1 |
| 3 | 45133KPL900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 |
| 4 | 45100K86D00 | PANEL COMP., FR. BRAKE | 1 |
| 5 | 45134250000 | DUST SEAL, BRAKE CAM | 1 |
| 6 | 45141KWPD00 | CAM, FR. BRAKE (RR.) | 1 |
| 7 | 45145096650 | INDICATOR, FR. BRAKE | 1 |
| 8 | 45410K86D00 | ARM, FR. BRAKE | 1 |
| 9 | 45435KPL900 | SPRING, BRAKE ARM RETURN | 1 |
| 10 | 45453K86D00 | JOINT, BRAKE ARM | 2 |
| 11 | 45454K86D00 | SLIDER A, JOINT | 2 |
| 12 | 45455K86D00 | SLIDER B, JOINT | 2 |
| 13 | 45456KWP910 | SPRING, BRAKE CABLE END | 2 |
| 14 | 45459K86D00 | NUT, BRAKE ADJUSTING | 2 |
| 15 | 9405006000 | NUT, FLANGE, 6MM | 1 |
| 16 | 957010603200 | BOLT, FLANGE, 6X32 | 1 |
| 17 | 957020603200 | BOLT, FLANGE, 6X32 | 1 |
