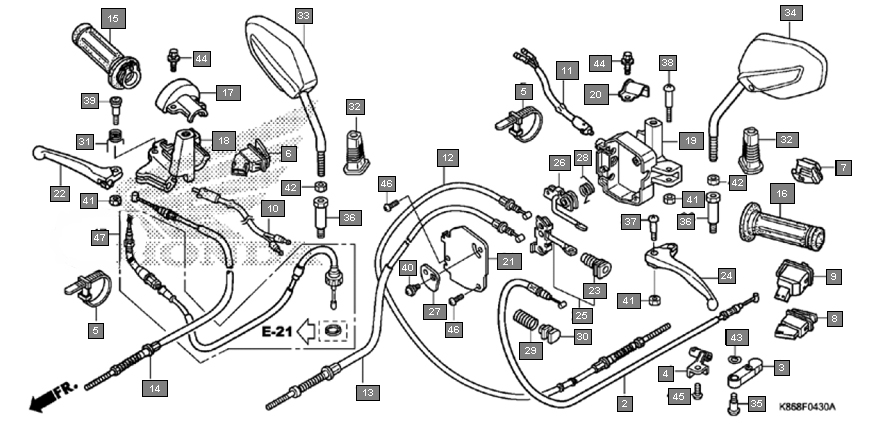

Scooters Grazia SCV125SJ Frame Handle lever/switch/cable(scv125s-3id,id)
Ref.No. Part No. Description Oty
1 17950K86D00 CABLE COMP., CHOKE 1
2 17961K74N00 LEVER, CHOKE 1
3 17962K86D00 STOPPER, CABLE 1
4 32161KSP920 BAND B1, WIRE 2
5 35160KWP901 SWITCH UNIT, STARTER 1
6 35170KPL842 SWITCH UNIT, DIMMER(JAY USHIN) 1
7 35170KPL901 SWITCH UNIT, DIMMER(MINDA) 1
8 35180KWP901 SWITCH UNIT, HORN 1
9 35200KWP901 SWITCH UNIT, WINKER(MINDA) 1
10 35340KPL841 SWITCH ASSY., FR. STOP 1
11 35340KWP911 SWITCH ASSY., FR. STOP 1
12 43450K24G01 CABLE COMP., RR. BRAKE(HI-LEX) 1
13 45440K86D01 CABLE COMP., L. FR. BRAKE 1
14 45450K86D01 CABLE COMP., R. FR. BRAKE 1
15 53146KRB901 GRIP COMP., THROTTLE 1
16 53166KPL901 GRIP, L. HANDLE 1
17 53167KPL900 HOUSING, UPPER THROTTLE 1
18 53168KWP900 HOUSING, UNDER THROTTLE 1
19 53172KWP910 BRACKET, L. BRAKE LEVER 1
20 53173K24G00 BAND, HANDLE BRACKET 1
21 53173KWP910 COVER, L. BRAKE LEVER BRACKET 1
22 53175KWPD00 LEVER, R. STEERING HANDLE 1
23 53176GBL870 BOOT, BRAKE LEVER ROD 1
24 53178KWPD00 LEVER, L. STEERING HANDLE 1
25 53180KWP910 EQUALIZER COMP. 1
26 53185KWP910 ARM COMP., RR. BRAKE LOCK 1
27 53186GBL870 COVER, RR. BRAKE LOCK LEVER 1
28 53186KWP910 SPRING, BRAKE LOCK ARM RETURN 1
29 53188K24900 SPRING, DELAY 1
30 53189K24900 STOPPER, EQUALIZER 1
31 53199KZN910 SPRING, BRAKE LEVER RETURN 1
32 88113KRPN40 CAP, LOCK NUT 2
33 88210K86D01 MIRROR COMP., R. 1
34 88220K86D01 MIRROR COMP., L. 1
35 90101K86D00 BOLT, CHOKE LEVER, 5X20 1
36 90102KWP900 BOLT, ADAPTER, 8MM 2
37 90115KPL900 SCREW, HANDLE LEVER PIVOT 1
38 90115KRP980 SCREW, HANDLE LEVER PIVOT 1
39 90115KZN910 SCREW, HANDLE LEVER PIVOT 1
40 90118KWP910 SCREW, PAN, 5X13 1
41 90304KPL900 NUT, HEX., 5MM 3
42 90310KPL900 LOCK NUT, R. MIRROR (LEFT HAND THREAD) 2
43 90442147000 WASHER, WAVE 1
44 934010602000 BOLT-WASHER, 6X20 2
45 93500050100G SCREW, PAN, 5X10 1
46 93500050121H SCREW, PAN, 5X12 2
47 06179K86D00 CABLE SET, THROTTLE 1
48 90442KTED00 WASHER, WAVE 1
