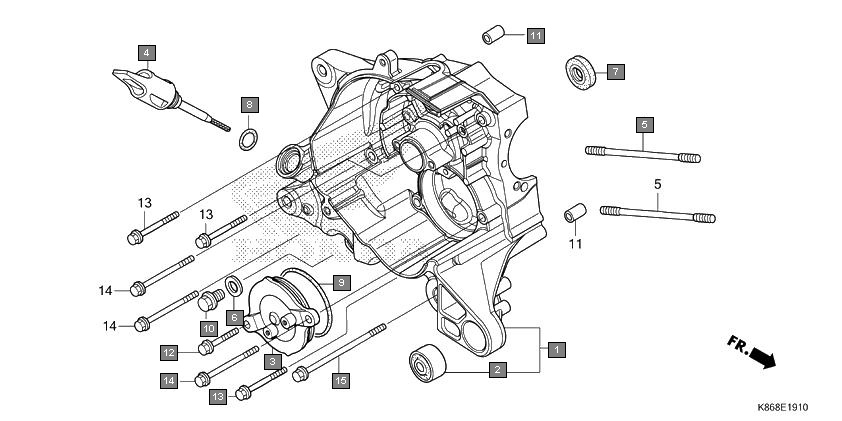

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 11100K24G00 | CRANKCASE COMP., R. | 1 |
| 2 | 11103K24G00 | BUSH, ENGINE HANGER RUBBER | 1 |
| 3 | 11361KVY900 | COVER, OIL PUMP | 1 |
| 4 | 15651K24G00 | GAUGE, OIL LEVEL | 1 |
| 5 | 90031K24900 | BOLT A, STUD, 7X200 | 2 |
| 6 | 90401KWPF00 | WASHER, DRAIN PLUG, 12MM | 1 |
| 7 | 91201KWPD01 | OIL SEAL, 16X26X7(ARAI) | 1 |
| 8 | 91307035000 | O-RING, 18X3 | 1 |
| 9 | 91307639000 | O-RING, 64X2 | 1 |
| 10 | 9280012000 | BOLT, DRAIN PLUG, 12MM | 1 |
| 11 | 9430108200 | DOWEL PIN, 8X20 | 2 |
| 12 | 957010602200 | BOLT, FLANGE, 6X22 | 1 |
| 13 | 957010605500 | BOLT, FLANGE, 6X55 | 4 |
| 14 | 957010608000 | BOLT, FLANGE, 6X80 | 3 |
| 15 | 957010611500 | BOLT, FLANGE, 6X115 | 1 |
