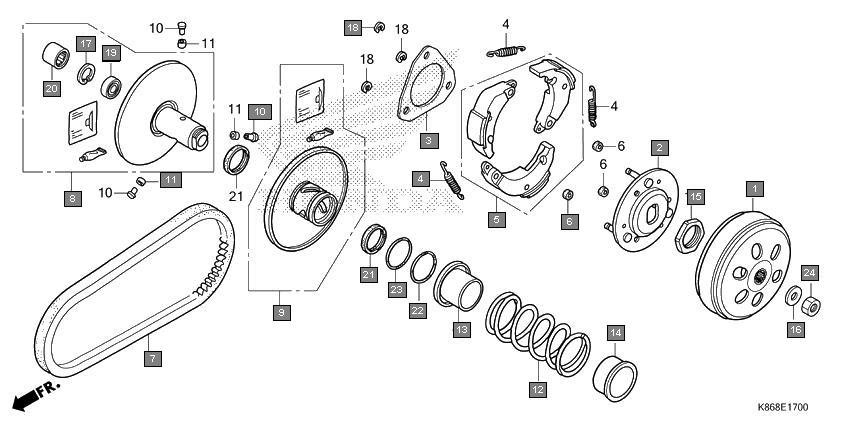

Scooters Grazia SCV125SJ Engine Driven face
Ref.No. Part No. Description Oty
1 22100KWPD01 OUTER COMP., CLUTCH(F.C.C.) 1
2 22350KWPD01 PLATE COMP., DRIVE 1
3 22361KWPD00 PLATE, CLUTCH SIDE 1
4 22401KVB900 SPRING, CLUTCH 3
5 22535KWPD00 WEIGHT SET, CLUTCH 1
6 22804148000 RUBBER, CLUTCH DAMPER 3
7 23100K24901 BELT, DRIVE(BANDO) 1
8 23205KWPF00 FACE SET, DRIVEN(F.C.C.) 1
9 23224K24G00 FACE SET, MOVABLE DRIVEN 1
10 23225KSY900 PIN, ROLLER GUIDE 3
11 23226KVB900 ROLLER, GUIDE 3
12 23233K24900 SPRING, DRIVEN FACE 1
13 23237KWPD00 COLLAR, SEAL 1
14 23238KWP900 COLLAR, SPRING 1
15 90202KPL900 NUT, SPECIAL, 28MM 1
16 90441GY6940 WASHER, 12.2X29X2.5 1
17 90601KWP900 CIRCLIP, INTERNAL, 28MM 1
18 90605166720 CIRCLIP, 7MM 3
19 91009KVY961 BEARING, RADIAL BALL, 6902U(NSK) 1
20 91109KVY902 BEARING, NEEDLE, 20X29X1(SCHAEFFLER) 1
21 91211K24901 SEAL, DRIVEN FACE, 34X39X3 2
22 91351642000 O-RING, PINION CAP 1
23 91351GR1000 O-RING, 38.5X2 1
24 9403012200 NUT, HEX., 12MM 1
