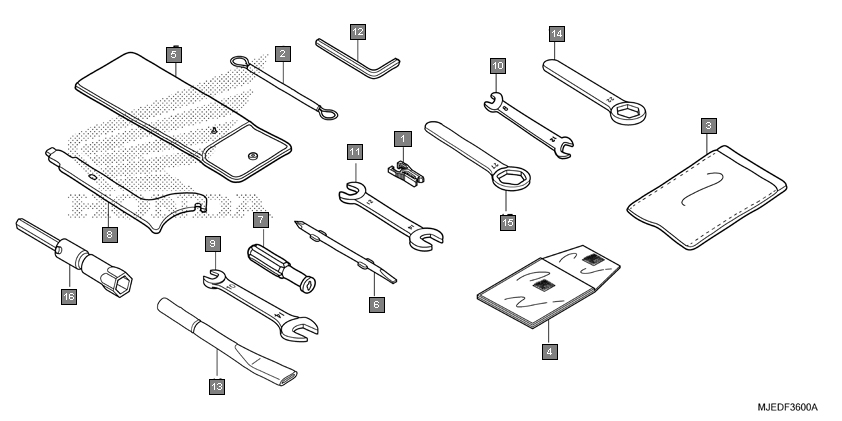

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 38235S04003 | PULLER, MINI FUSE(SUMITOMO) | 1 |
2 | 77236KAZ780 | WIRE, HELMET SET | 1 |
3 | 77251MBZG00 | BAG, SERVICE BOOK | 1 |
4 | 84510KWP900 | AID KIT, FIRST | 1 |
5 | 89101MC7000 | BAG, TOOL | 1 |
6 | 89102KTC900 | DRIVER, SCREW(NO.2 +/-) | 1 |
7 | 89103538000 | GRIP | 1 |
8 | 89202KV0000 | SPANNER, PIN | 1 |
9 | 89211KWW640 | SPANNER, 10X14 | 1 |
10 | 89211MGZJ00 | SPANNER, 8X12 | 1 |
11 | 89213KWW601 | SPANNER, 12X14(ATC) | 1 |
12 | 89221MGZJ00 | WRENCH, HEX., 5MM | 1 |
13 | 89256MT4000 | GRIP, RR. WHEEL WRENCH | 1 |
14 | 9900622000 | WRENCH, EYE, 22MM | 1 |
15 | 9900627000 | WRENCH, EYE, 27MM | 1 |
16 | 89216KYJ900 | WRENCH, PLUG(16.5) | 1 |
