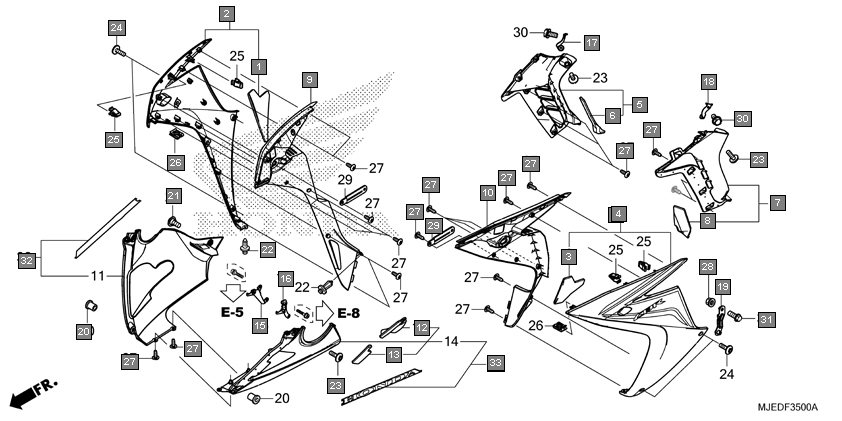

Motorcycles CBR650F CBR650FAJ Frame Lower cowl
Ref.No. Part No. Description Oty
1 64213MJED00 MAT A, R. MIDDLE COWL 1
2 64215MJEDB0ZC COWL ASSY. A, R. MIDDLE(WL) *TYPE1* 1
3 64215MJEDD0ZC COWL ASSY. A, R. MIDDLE(WL) *TYPE1* 1
4 64223MJED00 MAT A, L. MIDDLE COWL 1
5 64225MJEDD0ZC COWL ASSY. A, L. MIDDLE(WL) *TYPE1* 1
6 64225MJEDB0ZC COWL ASSY. A, L. MIDDLE(WL) *TYPE1* 1
7 64230MJED00 COWL ASSY. B, R. MIDDLE 1
8 64232MJED00 MAT B, R. MIDDLE COWL 1
9 64240MJED00 COWL ASSY. B, L. MIDDLE 1
10 64242MJED00 MAT B, L. MIDDLE COWL 1
11 64251MJED00 PANEL, R. INNER 1
12 64261MJED00 PANEL, L. INNER 1
13 64282MJED00 MAT, L. UNDER COWL 1
14 64283MJED00 MAT B, L. UNDER COWL 1
15 64610MJED00 STAY, R. UNDER COWL 1
16 64620MJED00 STAY, L. UNDER COWL 1
17 64650MJED00 STAY B, R. MIDDLE 1
18 64660MJED00 STAY B, L. MIDDLE 1
19 64670MJED00 STAY, RR. UNDER COWL 1
20 90111KW3003 NUT, COWL SETTING, 5MM 2
21 90115MGZJ00 SCREW, SPECIAL, 6X14 1
22 90116MCSG00 RIVET, PUSH 2
23 90133MJED00 SCREW, PAN, 5X16 3
24 90134MJED00 SCREW, PAN, 5X16 4
25 90601SJA003 CLIP, SNAP FITTING 4
26 90677KANT00 NUT, CLIP, 5MM 2
27 9390324380 SCREW, TAPPING, 4X12 24
28 9405006000 NUT, FLANGE, 6MM 1
29 9459127000 CLIP, 2X70 2
30 957010601200 BOLT, FLANGE, 6X12 2
31 960010601807 BOLT, FLANGE, 6X18 1
32 64200MJEDD0ZA COWL SET, R. UNDER(WL) *TYPE3* 1
33 64200MJEDD0ZC COWL SET, R. UNDER(WL) *TYPE1* 1
34 64285MJEDD0ZA COWL ASSY., L. UNDER(WL) *TYPE3* 1
35 64285MJEDD0ZC COWL ASSY., L. UNDER(WL) *TYPE1* 1
