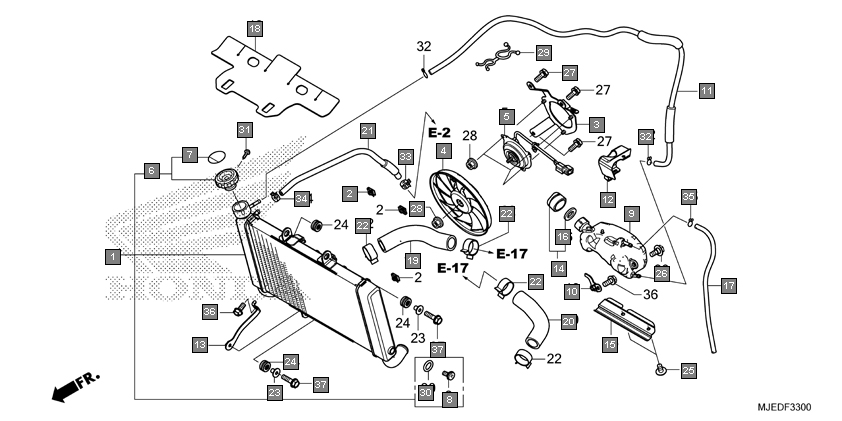

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 19010MJET11 | RADIATOR COMP. | 1 |
| 2 | 19014KEA003 | NUT, SETTING(6MM) | 3 |
| 3 | 19015MJED01 | SHROUD COMP. | 1 |
| 4 | 19020MFGD01 | FAN COMP., COOLING | 1 |
| 5 | 19030MJED01 | MOTOR ASSY., FAN | 1 |
| 6 | 19045KPPT01 | CAP COMP., RADIATOR(T.RAD) | 1 |
| 7 | 19055KPPT01 | SEAL, RADIATOR CAP | 1 |
| 8 | 19071MEC003 | COCK, DRAIN | 1 |
| 9 | 19101MJED00 | TANK, RADIATOR RESERVE | 1 |
| 10 | 19102MJED00 | STAY, RESERVE TANK | 1 |
| 11 | 19103MJED00 | TUBE, RESERVE TANK | 1 |
| 12 | 19104MJED00 | COVER, RESERVE TANK | 1 |
| 13 | 19105MJED00 | STAY, RADIATOR LOWER | 1 |
| 14 | 19106GET000 | CAP ASSY., RESERVE TANK | 1 |
| 15 | 19106MJEDB0 | GUARD, RESERVE TANK HEAT | 1 |
| 16 | 19107GET000 | PACKING, RESERVE TANK | 1 |
| 17 | 19108MJED00 | TUBE, RESERVE TANK OVERFLOW | 1 |
| 18 | 19126MJED00 | GUARD, RADIATOR HEAT | 1 |
| 19 | 19501MJED00 | HOSE A, RADIATOR | 1 |
| 20 | 19502MJED00 | HOSE B, RADIATOR | 1 |
| 21 | 19510MJED00 | TUBE, WATER BREATHER | 1 |
| 22 | 19511R9G004 | CLIP, WATER HOSE | 4 |
| 23 | 61102KTYD30 | COLLAR, RADIATOR MOUNTING | 2 |
| 24 | 61304415000 | RUBBER, HEADLIGHT CASE MOUNTING | 3 |
| 25 | 90106KRG000 | SCREW, PAN, 6X12 | 2 |
| 26 | 90111162000 | BOLT, FLANGE, 6MM | 1 |
| 27 | 90120GHB601 | BOLT-WASHER, 6X12 | 3 |
| 28 | 90315MK3003 | NUT, SERRATE, 5MM | 4 |
| 29 | 90647657671 | CLIP, PURSE LOCK | 1 |
| 30 | 91353MEC003 | O-RING, 9.8X1.9 | 1 |
| 31 | 9390122020 | SCREW, TAPPING, 3X6 | 1 |
| 32 | 9500202100 | CLIP, TUBE(B10) | 2 |
| 33 | 950024105008 | CLAMP, TUBE(D10.5) | 1 |
| 34 | 950024125008 | CLAMP, TUBE(D12.5) | 1 |
| 35 | 9500250000 | CLIP, TUBE(C9) | 1 |
| 36 | 957010601400 | BOLT, FLANGE, 6X14 | 2 |
| 37 | 957010602207 | BOLT, FLANGE, 6X22 | 2 |
