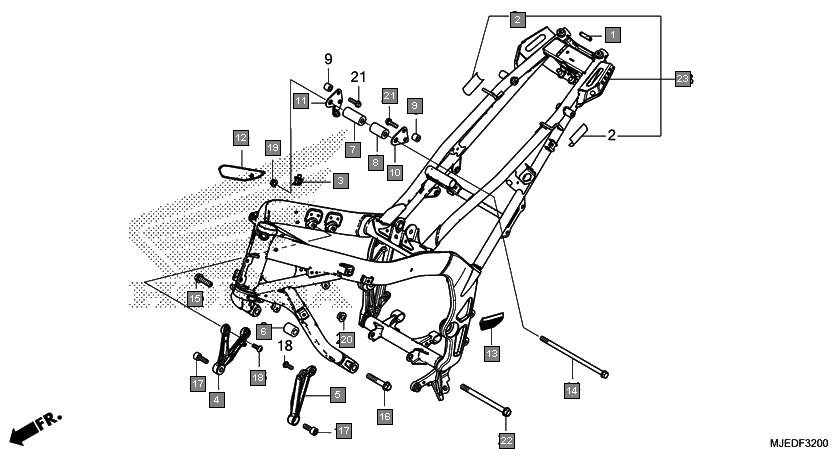

Motorcycles CBR650F CBR650FAJ Frame Frame body
Ref.No. Part No. Description Oty
1 17518MFND00 TRIM, FUEL TANK 1
2 17528KCZ930 TAPE B, TANK GUARD 2
3 32161393003 CLIP, WIRE HARNESS 1
4 50211MJED00 BRACKET B, R. ENGINE HANGER 1
5 50212MJED00 BRACKET B, L. ENGINE HANGER 1
6 50351MJED00 COLLAR A, ENGINE HANGER 1
7 50352MJED00 COLLAR C, R. ENGINE HANGER 1
8 50353MJED00 COLLAR C, L. ENGINE HANGER 1
9 50354MJED00 SPACER C, ENGINE HANGER 4
10 50355MJED00 PLATE, ENGINE HANGER 1
11 50355MJED10 PLATE, R. ENGINE HANGER 1
12 64311MJED00 COVER, R. FRAME 1
13 64321MJED00 COVER, L. FRAME 1
14 90101GET000 BOLT, FLANGE, 10X230 1
15 90101MJED00 BOLT, FLANGE, 12X40 1
16 90102MJED00 BOLT, FLANGE, 12X65 1
17 90105MJED00 BOLT, SOCKET, 10X30 2
18 90127KYJ900 BOLT, SOCKET, 8X22 4
19 9405010000 NUT, FLANGE, 10MM 1
20 9405012000 NUT, FLANGE, 12MM 1
21 957010802807 BOLT, FLANGE, 8X28 4
22 958011216008 BOLT, FLANGE, 12X160 1
23 50010MJE315ZA BODY SET, FRAME *NH303M* MAT AXIS GRAY METALLIC 1
