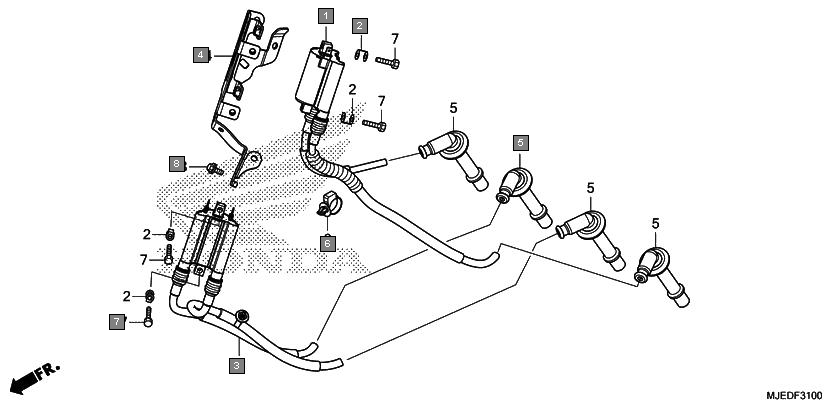

Motorcycles CBR650F CBR650FAJ Frame Ignition coil
Ref.No. Part No. Description Oty
1 30511MJED01 COIL ASSY., IGNITION(1,4) 1
2 30520GFM900 SPACER, IGNITION COIL 4
3 30521MJED01 COIL ASSY., IGNITION(2,3) 1
4 30550MJED00 STAY COMP., IGNITION COIL 1
5 30700MBG000 CAP ASSY., NOISE SUPPRESSOR 4
6 90652HC4003 CLAMP, HARNESS 1
7 92101060204J BOLT, HEX., 6X20 4
8 957010601200 BOLT, FLANGE, 6X12 1
