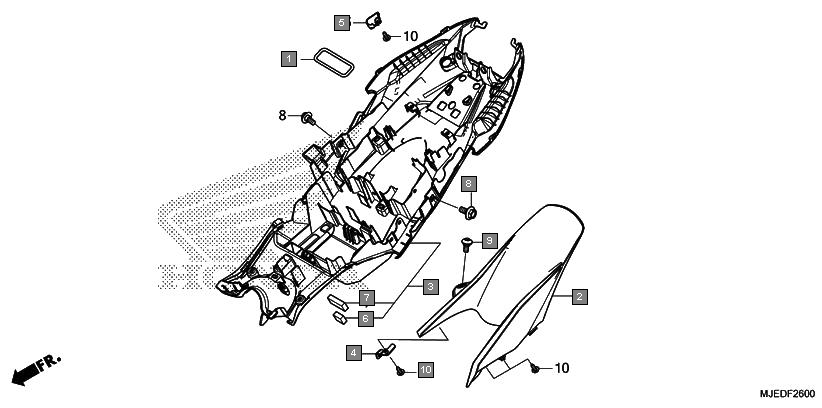

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50290MBL610 | BAND, U-LOCK | 1 |
2 | 80103MJED00 | FENDER C, RR. | 1 |
3 | 80105MJEDB0 | FENDER COMP. B, RR. | 1 |
4 | 80106MJED00 | STAY C, RR. FENDER | 1 |
5 | 80107MJED00 | COVER B, R. RR. FENDER | 1 |
6 | 80109MJED00 | RUBBER B, RR. FENDER SPONGE | 1 |
7 | 83705MT3300 | RUBBER, SIDE COVER SPONGE | 1 |
8 | 90111187000 | BOLT, FLANGE, 6MM | 2 |
9 | 90115MGZJ00 | SCREW, SPECIAL, 6X14 | 1 |
10 | 9390324380 | SCREW, TAPPING, 4X12 | 4 |
