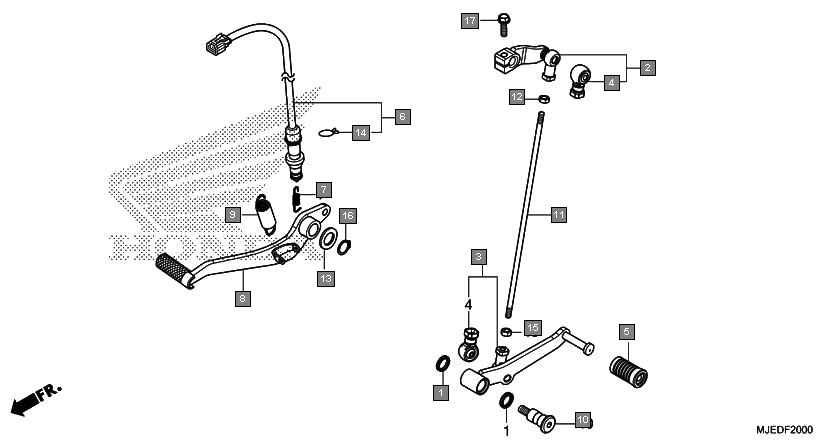

Motorcycles CBR650F CBR650FAJ Frame Pedal
Ref.No. Part No. Description Oty
1 24706MK3770 RUBBER, DUST SEAL 2
2 24710MJED00 ARM COMP., GEAR CHANGE 1
3 24720MJED00 PEDAL COMP., GEAR CHANGE 1
4 24724MBWD21 COVER, DUST 2
5 24781KSP860 RUBBER, CHANGE PEDAL 1
6 35350MJED02 SWITCH ASSY., RR. STOP 1
7 35357HP0A00 SPRING, STOP SWITCH 1
8 46500MJED00 PEDAL COMP., BRAKE 1
9 46513KYJ900 SPRING ASSY., BRAKE PEDAL 1
10 90113MGZJ00 BOLT, CHANGE PIVOT 1
11 90165MJED00 BOLT, TIE ROD 1
12 90301MGZJ00 NUT, SPECIAL, 6MM (LEFT HAND THREAD) 1
13 90557230000 WASHER, 15.2X25 1
14 90651MGE641 CLIP, SWITCH COVER 1
15 94001060700S NUT, HEX., 6MM 1
16 9451115000 CIRCLIP, EXTERNAL, 15MM 1
17 957010602007 BOLT, FLANGE, 6X20 1
