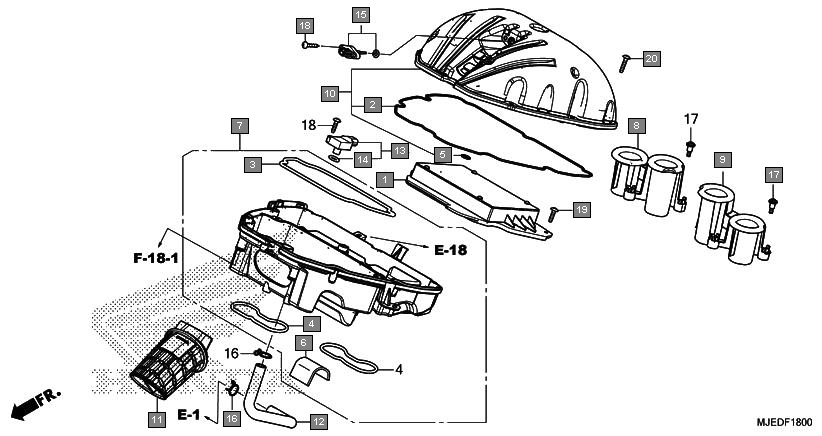

Motorcycles CBR650F CBR650FAJ Frame Air cleaner
Ref.No. Part No. Description Oty
1 17210MJED00 ELEMENT COMP., AIR CLEANER 1
2 17213MJED00 SEAL, AIR CLEANER 1
3 17214MJED00 SEAL, AIR CLEANER ELEMENT 1
4 17215MJED00 SEAL, THROTTLE BODY 2
5 17216MJED00 SEAL, CENTER BOSS 1
6 17217MJED00 RUBBER, CUSHION 1
7 17224MJED01 CASE SUB ASSY., AIR CLEANER 1
8 17225MJED00 FUNNEL, R. AIR 1
9 17226MJED00 FUNNEL, L. AIR 1
10 17235MJED01 COVER SUB ASSY., AIR CLEANER 1
11 17241MJED00 DUCT, AIR CLEANER 1
12 17265MJED00 TUBE, BREATHER 1
13 37830RGA006 SENSOR ASSY., MAP 1
14 37875RGA006 O-RING 1
15 37880KWWC01 SENSOR ASSY., AIR TEMP 1
16 90646657000 CLIP, AIR HOSE, 16MM 2
17 91508MM5000 SCREW, PAN, 5MM 6
18 9390125420 SCREW, TAPPING, 5X20 3
19 9390325480 SCREW, TAPPING, 5X20 2
20 9390325510 SCREW, TAPPING, 5X25 9
