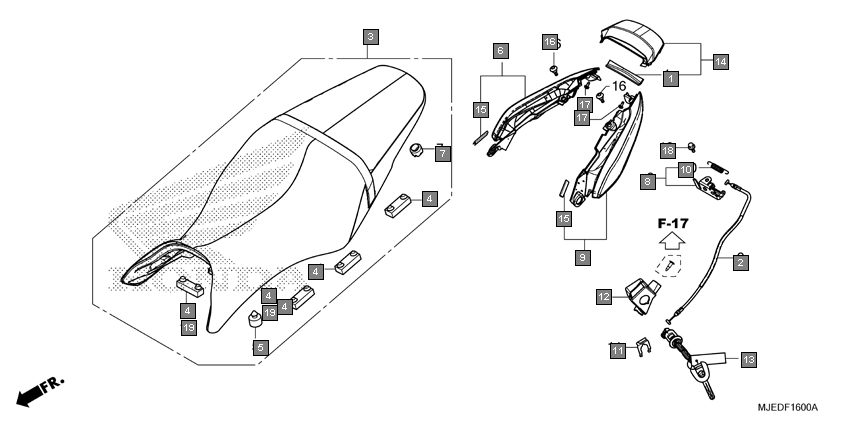

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 64465MJED00 | RUBBER SPONGE, RR. FENDER | 1 |
2 | 77156MJED01 | CABLE, SEAT LOCK | 1 |
3 | 77205286000 | RUBBER B, SEAT SETTING | 4 |
4 | 77206MJEDB0 | RUBBER, SEAT CUSHION | 2 |
5 | 77211MJED00 | COWL ASSY., R. RR. | 1 |
6 | 77214KPH900 | RUBBER B, SEAT SETTING | 1 |
7 | 77220MJED00 | LOCK COMP., SEAT | 1 |
8 | 77221MJED00 | COWL ASSY., L. RR. | 1 |
9 | 77234GN2000 | SPRING, SEAT LOCK | 1 |
10 | 77235MJED00 | PLATE, LOCK KEY SETTING | 1 |
11 | 77237MJED00 | PROTECTOR, SEAT LOCK KEY | 1 |
12 | 77239MJED03 | KEY, SEAT LOCK(WAVE) | 1 |
13 | 77250MJED00ZA | COWL ASSY., RR. CENTER(WL) *TYPE1* | 1 |
14 | 83512MJED00 | FILM, PROTECTOR | 2 |
15 | 90115MGZJ00 | SCREW, SPECIAL, 6X14 | 2 |
16 | 9390324380 | SCREW, TAPPING, 4X12 | 2 |
17 | 957010601200 | BOLT, FLANGE, 6X12 | 1 |
18 | 77205MFE670 | RUBBER, SEAT SETTING | 3 |
19 | 77200MJED02ZA | SEAT ASSY.. DOUBLE *TYPE1* | 1 |
