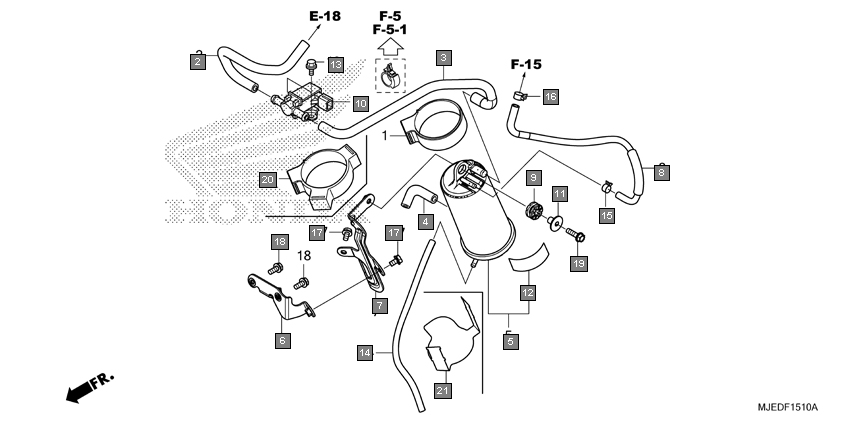

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17412MJEL00 | TUBE(PCSV-THROTTLE BODY) | 1 |
2 | 17413MJEL00 | TUBE(PCSV-CANISTER) | 1 |
3 | 17414MJETB0 | TUBE, AIR | 1 |
4 | 17420MGZA02 | CANISTER COMP. | 1 |
5 | 17430MJEL00 | STAY COMP. A, CANISTER | 1 |
6 | 17440MJEL00 | STAY COMP. B, CANISTER | 1 |
7 | 17580MJET10 | TUBE, CANISTER | 1 |
8 | 33115KVK900 | RUBBER, HEADLIGHT | 1 |
9 | 36162MKAD81 | VALVE, PURGE CONTROL SOLENOID | 1 |
10 | 61104428000 | COLLAR, FR. FENDER | 1 |
11 | 64382MM5300 | TAPE, COVER | 1 |
12 | 90002MC7000 | BOLT, FLANGE, 5X8 | 2 |
13 | 950014532040 | TUBE, FUEL, 4.5X320 (95001-45001-60M) | 1 |
14 | 950024080008 | CLAMP, TUBE(D8) | 1 |
15 | 950024100008 | CLAMP, TUBE(D10) | 1 |
16 | 957010601000 | BOLT, FLANGE, 6X10 | 2 |
17 | 957010601400 | BOLT, FLANGE, 6X14 | 2 |
18 | 957010602208 | BOLT, FLANGE, 6X22 | 1 |
19 | 17411MJETB0 | RUBBER, CANISTER MOUNT | 1 |
20 | 17430MJETB0 | GUARD, HEAT | 1 |
