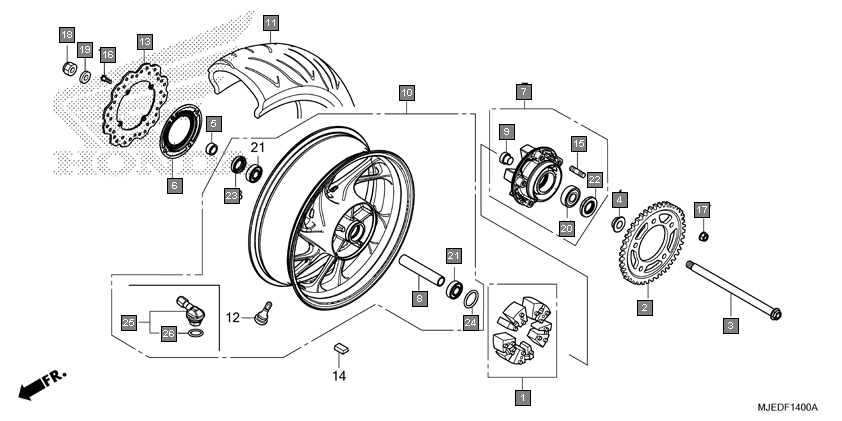

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06410MERD00 | DAMPER SET, WHEEL | 1 |
| 2 | 41201MBZG01 | SPROCKET, FINAL DRIVEN(42T) | 1 |
| 3 | 42301MJED00 | AXLE, RR. WHEEL | 1 |
| 4 | 42311MERD00 | COLLAR, L. RR. WHEEL SIDE | 1 |
| 5 | 42312MERD00 | COLLAR, RR. BRAKE SIDE | 1 |
| 6 | 42515MGZJ10 | RING, RR. PULSER | 1 |
| 7 | 42615MJED00 | FLANGE SUB ASSY., RR. DRIVEN | 1 |
| 8 | 42620MJED00 | COLLAR, FR. AXLE DISTANCE (RR.) | 1 |
| 9 | 42625MERD00 | COLLAR B, RR. WHEEL DISTANCE | 1 |
| 10 | 42650MJEDB0ZA | WHEEL SUB ASSY., RR. *TYPE1* | 1 |
| 11 | 42711MJEDB1 | TIRE, RR.(DUNLOP) (180/55ZR17 M/C 73W) | 1 |
| 12 | 43251MGZJ02 | DISK, RR. BRAKE(SUNSTAR) | 1 |
| 13 | 90102MAS000 | BOLT, STUD, 12X25 | 5 |
| 14 | 90105MGSD30 | BOLT, DISK, 8X25 | 4 |
| 15 | 90306KGH901 | NUT, U, 12MM(FUJI SEIMITSU) | 5 |
| 16 | 90306MJED01 | NUT, U, 18MM | 1 |
| 17 | 90401MAS000 | WASHER, 20X31.5X2 | 1 |
| 18 | 91051MAS003 | BEARING, RADIAL BALL, 6322 | 1 |
| 19 | 91053MGSD31 | BEARING, RADIAL BALL(6204)(UU) | 2 |
| 20 | 91252MAS003 | DUST SEAL, 30X56X7.5 | 1 |
| 21 | 91253MAE003 | DUST SEAL, 30X47X7.5 | 1 |
| 22 | 91351MGSD30 | O-RING, 55X2 | 1 |
| 23 | 42755MKAD81 | VALVE ASSY., CLAMP IN | 1 |
| 24 | 42758MKAD81 | O-RING | 1 |
