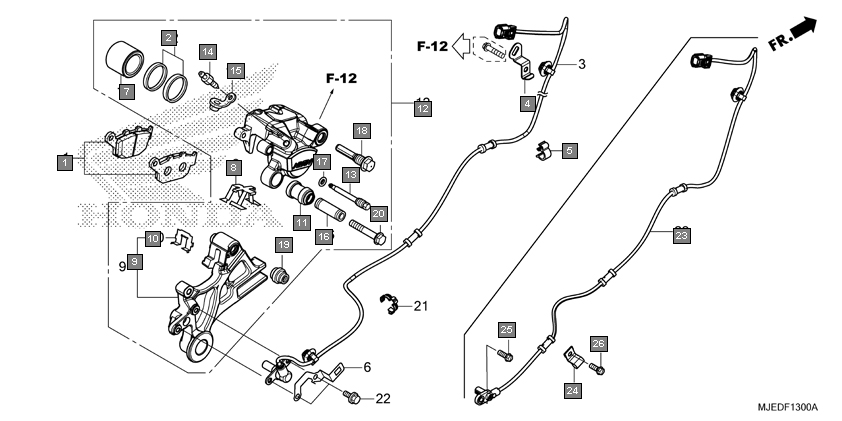

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06435MGZJ01 | PAD SET, RR. | 1 |
2 | 06451443405 | SEAL SET, PISTON | 1 |
3 | 38515MJED10 | STAY, RR. SENSOR CORD | 1 |
4 | 38517MGE003 | CLAMP, ABS CORD(12) | 1 |
5 | 43107KT7761 | PISTON | 1 |
6 | 43108MBB006 | SPRING, PAD | 1 |
7 | 43110MJEDB1 | BRACKET COMP., RR. BRAKE | 1 |
8 | 43112KT7761 | RETAINER | 1 |
9 | 43132KT7761 | BOOT, SLEEVE | 1 |
10 | 43150MJEDB1 | CALIPER SUB ASSY., RR. BRAKE (NISSIN) | 1 |
11 | 43215KZ4J41 | PIN, HANGER | 1 |
12 | 43352568003 | SCREW, BLEEDER(NISSIN) | 1 |
13 | 43353461771 | CAP, BLEEDER | 1 |
14 | 45111MA3006 | SLEEVE | 1 |
15 | 45111MAJG41 | RING, STOPPER | 1 |
16 | 45131MN9006 | BOLT, PIN | 1 |
17 | 45133MA3006 | BOOT B | 1 |
18 | 90180MN8006 | BOLT, FLANGE, 8X49 | 1 |
19 | 38510MJEDB1 | SENSOR, RR. WHEEL SPEED | 1 |
20 | 45157MEJJ00 | CLAMPER A, SENSOR CORD | 1 |
21 | 90107MEJD00 | BOLT, FLANGE, 6X16 | 1 |
22 | 960010601207 | BOLT, FLANGE, 6X12 | 1 |
