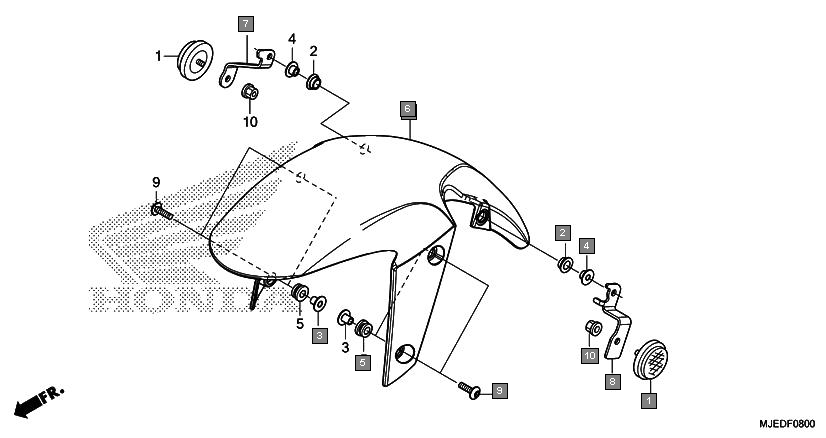

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33740KTE601 | REFLECTOR, FR. SIDE REFLEX | 2 |
2 | 61103KPF910 | RUBBER, FR. FENDER MOUNTING | 2 |
3 | 61103KRY900 | COLLAR A, FR. FENDER | 4 |
4 | 61105KPF910 | COLLAR, FR. FENDER MOUNTING | 2 |
5 | 61105KRY900 | RUBBER, FR. FENDER MOUNTING | 4 |
6 | 61110MJEDD0ZB | FENDER SET, FR.(WL) *TYPE3* | 1 |
7 | 61110MJEDD0ZD | FENDER SET, FR.(WL) *TYPE1* | 1 |
8 | 61115MJEA00 | STAY, R. FR. REFLECTOR | 1 |
9 | 61116MJEA00 | STAY, L. FR. REFLECTOR | 1 |
10 | 90130KYJ900 | SCREW, PAN, 6X22 | 4 |
11 | 90302KTE911 | NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) | 2 |
