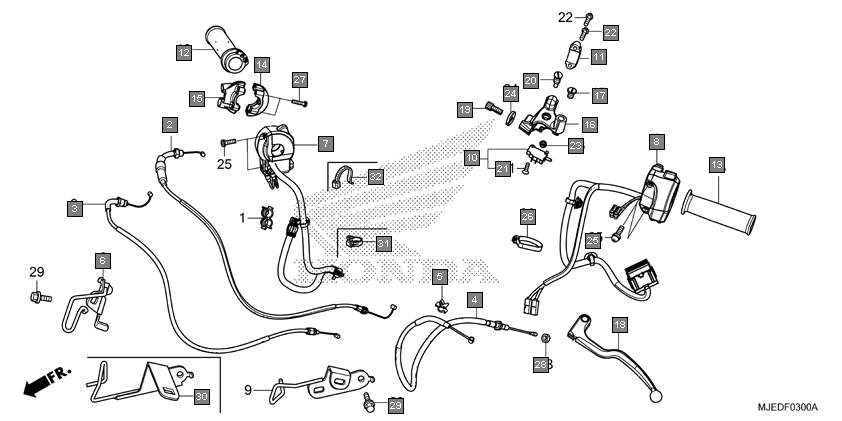

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17910MJEDB1 | CABLE COMP. A, THROTTLE (HI-LEX) | 1 |
2 | 17920MJEDB1 | CABLE COMP. B, THROTTLE (HI-LEX) | 1 |
3 | 22870MJED01 | CABLE COMP., CLUTCH | 1 |
4 | 32172GJ1003 | CLIP B, HARNESS | 1 |
5 | 35106MJEDB0 | GUIDE COMP., CABLE | 1 |
6 | 35130MJEDB1 | SWITCH ASSY., ENGINE STOP (MINDA) | 1 |
7 | 35200MJEDB1 | SWITCH ASSY., WINKER(MINDA) | 1 |
8 | 35335MCJ751 | SWITCH SET, CLUTCH | 1 |
9 | 45517KCW870 | HOLDER, MASTER CYLINDER | 1 |
10 | 53140MGSD30 | GRIP COMP., THROTTLE | 1 |
11 | 53150MGSD30 | GRIP, L. HANDLE | 1 |
12 | 53167MGSD30 | HOUSING, UPPER THROTTLE | 1 |
13 | 53168MGSD30 | HOUSING, UNDER THROTTLE | 1 |
14 | 53172MJED00 | HOLDER, CLUTCH LEVER | 1 |
15 | 53174116670 | PLUG, HANDLE LEVER BRACKET | 1 |
16 | 53178MJED00 | LEVER COMP., L. HANDLE | 1 |
17 | 53192MJED00 | BOLT, WIRE ADJUSTING | 1 |
18 | 90113438000 | BOLT, L. STEERING HANDLE LEVER PIVOT | 1 |
19 | 90124MCJ752 | SCREW, FLAT, 3X16 | 1 |
20 | 90131MJED00 | BOLT, FLANGE, 6X22 | 2 |
21 | 90301782000 | NUT, U, 6MM | 1 |
22 | 90321KT7760 | NUT, FIXING | 1 |
23 | 90508MGSD30 | SCREW-WASHER, 5X16 | 4 |
24 | 90651KV6003 | BAND, WIRE, 165MM(BLACK) | 1 |
25 | 93500050220G | SCREW, PAN, 5X22 | 2 |
26 | 94002080700S | NUT, HEX., 8MM | 1 |
27 | 957010601008 | BOLT, FLANGE, 6X10 | 2 |
28 | 35205MJEDB0 | STAY, L. CLIP | 1 |
29 | 90652HC4003 | CLAMP, HARNESS | 1 |
30 | 90652KT1771 | BAND, WIRE(BLACK) | 1 |
