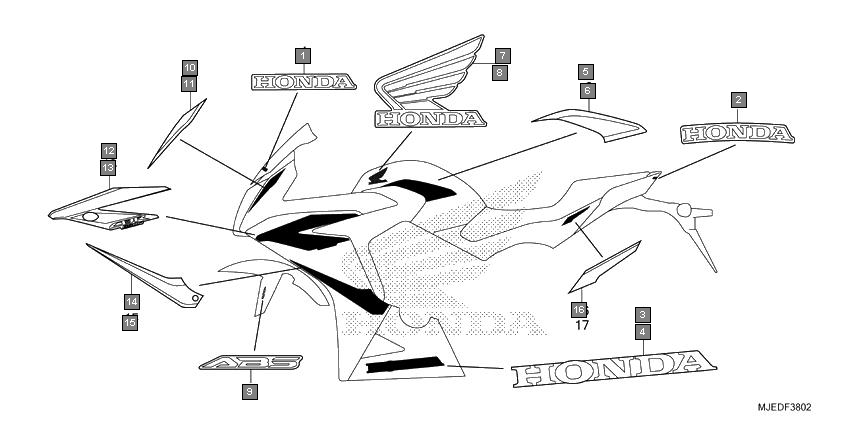

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 86101MJED00ZA | MARK, HONDA(80MM) *TYPE1* | 1 |
2 | 86102MJED00ZA | MARK, HONDA(70MM)*TYPE1* | 1 |
3 | 86103MJEDD0ZC | MARK, R.(HONDA)(300MM) *TYPE1* | 1 |
4 | 86104MJEDD0ZC | MARK, L.(HONDA)(300MM) *TYPE1* | 1 |
5 | 86171MJEDD0ZC | STRIPE, R. FUEL TANK *TYPE1* | 1 |
6 | 86172MJEDD0ZC | STRIPE, L. FUEL TANK *TYPE1* | 1 |
7 | 86201MJEDD0ZD | MARK, R. WING(100MM) *TYPE1* | 1 |
8 | 86202MJEDD0ZD | MARK, L. WING(100MM) *TYPE1* | 1 |
9 | 86611MGZD10ZC | MARK, ABS *TYPE1* (R. SIDE ONLY) | 1 |
10 | 86641MJEDD0ZC | STRIPE, R. UPPER COWL A *TYPE1* | 1 |
11 | 86642MJEDD0ZC | STRIPE, L. UPPER COWL A *TYPE1* | 1 |
12 | 86643MJEDD0ZC | STRIPE A, R. MIDDLE COWL A *TYPE1* | 1 |
13 | 86644MJEDD0ZC | STRIPE A, L. MIDDLE COWL A *TYPE1* | 1 |
14 | 86645MJEDD0ZC | STRIPE B, R. MIDDLE COWL A *TYPE1* | 1 |
15 | 86646MJEDD0ZC | STRIPE B, L. MIDDLE COWL A *TYPE1* | 1 |
16 | 86831MJEDD0ZC | STRIPE, R. SIDE COVER *TYPE1* | 1 |
