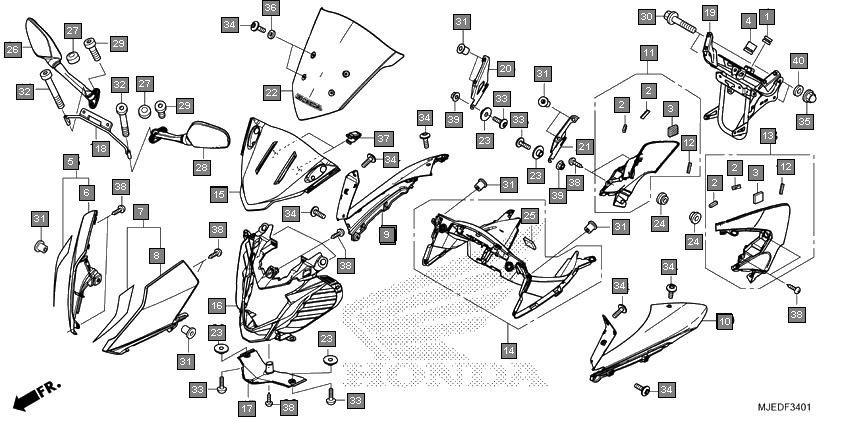

Motorcycles CBR650F CBR650FAJ Frame Upper cowl(cbr650faj)
Ref.No. Part No. Description Oty
1 11344MB0000 GROMMET A, RR. COVER(8X16X6.6) 1
2 17541MJED00 FASTENER C, DUAL LOCK, 8X25 4
3 17542MJED00 FASTENER D, DUAL LOCK, 20X20 2
4 37215KZZ900 RUBBER, METER SETTING 3
5 64110MJEDD0ZC COWL SET A, R. UPPER(WL) *TYPE1* 1
6 64111MJED00ZE COWL A, R. UPPER MAT GUNPOWDER BLACK METALLIC *NH436M* 1
7 64120MJEDD0ZC COWL SET A, L. UPPER(WL) *TYPE1* 1
8 64121MJED00ZE COWL A, L. UPPER MAT GUNPOWDER BLACK METALLIC *NH436M* 1
9 64131MJED00ZE COWL B, R. UPPER MAT GUNPOWDER BLACK METALLIC *NH436M* 1
10 64131MJED00ZA COWL B, R. UPPER *R263* MILLENNIUM RED 1
11 64141MJED00ZA COWL B, L. UPPER *R263* MILLENNIUM RED 1
12 64141MJED00ZE COWL B, L. UPPER MAT GUNPOWDER BLACK METALLIC *NH436M* 1
13 64150MJED00 COWL ASSY. C, R. UPPER 1
14 64152MJED00 RUBBER, UPPER COWL 2
15 64160MJED00 COWL ASSY. C, L. UPPER 1
16 64170MJED02 PANEL ASSY., METER 1
17 64181MJEDB0ZB COVER A, HEADLIGHT GRAPHITE BLACK *NHB01* 1
18 64181MJEDB0ZA COVER A, HEADLIGHT *NH436M* MAT GUNPOWDER BLACK METALLIC 1
19 64185MJEDB0 COVER B, HEADLIGHT 1
20 64191MJEDB0 COVER, FR. HEADLIGHT LOWER 1
21 64305MJES10 STAY, FR. NUMBER PLATE 1
22 64501MJEDB0 STAY COMP., FR. UPPER COWL 1
23 67102MJED00 STAY, R. SCREEN 1
24 67103MJED00 STAY, L. SCREEN 1
25 67110MJED00ZA WINDSCREEN(WL) *TYPE1* 1
26 80113MJED00 COLLAR A 6
27 83551376000 GROMMET, SIDE COVER 2
28 86150GFC901 EMBLEM, PRODUCT(MARUI) 1
29 88110MJED01 MIRROR ASSY., R. BACK 1
30 88113MJES11 RUBBER, PLUG 2
31 88120MJED01 MIRROR ASSY., L. BACK 1
32 90001MCKA50 BOLT, SOCKET, 6X20 2
33 90101GBL000 BOLT, FLANGE, 8X35 2
34 90111KW3003 NUT, COWL SETTING, 5MM 8
35 90111MJES10 BOLT, SOCKET, 6X50 2
36 90133MJED00 SCREW, PAN, 5X16 6
37 90134MJED00 SCREW, PAN, 5X16 10
38 90307MJED00 NUT, HEX. CAP, 8MM 2
39 90504964000 WASHER, THRUST, 5MM 4
40 90651K33D00 CLIP, SNAP FIT(BLACK) 2
41 9390324380 SCREW, TAPPING, 4X12 12
42 9405005000 NUT, FLANGE, 5MM 4
43 9410108700 WASHER, PLAIN, 8MM 2
