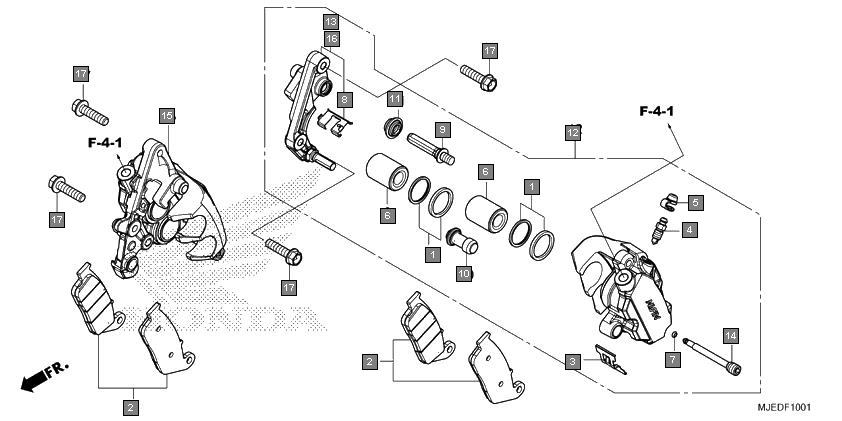

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06451GE2405 | SEAL SET, PISTON | 4 |
2 | 06455MJED02 | PAD SET, FR. | 2 |
3 | 43108MCT006 | SPRING, PAD | 2 |
4 | 43352568003 | SCREW, BLEEDER(NISSIN) | 2 |
5 | 43353461771 | CAP, BLEEDER | 2 |
6 | 45107MN5006 | PISTON | 4 |
7 | 45111MAJG41 | RING, STOPPER | 2 |
8 | 45112MS9611 | RETAINER | 2 |
9 | 45131ML7921 | BOLT A, PIN | 2 |
10 | 45132166016 | BOOT, PIN BUSH(NISSIN) | 2 |
11 | 45133MA3006 | BOOT B | 2 |
12 | 45150MJEDB1 | CALIPER SUB ASSY., L. FR. (NISSIN) | 1 |
13 | 45190MJEDB1 | BRACKET SUB ASSY., L. FR. (NISSIN) | 1 |
14 | 45215MAJG41 | PIN, HANGER | 2 |
15 | 45250MJEDB1 | CALIPER SUB ASSY., R. FR. (NISSIN) | 1 |
16 | 45290MKAD81 | BRACKET SUB ASSY., R. FR. (NISSIN) | 1 |
17 | 90131KBV003 | BOLT, FLANGE, 8X32(SAGA) | 4 |
