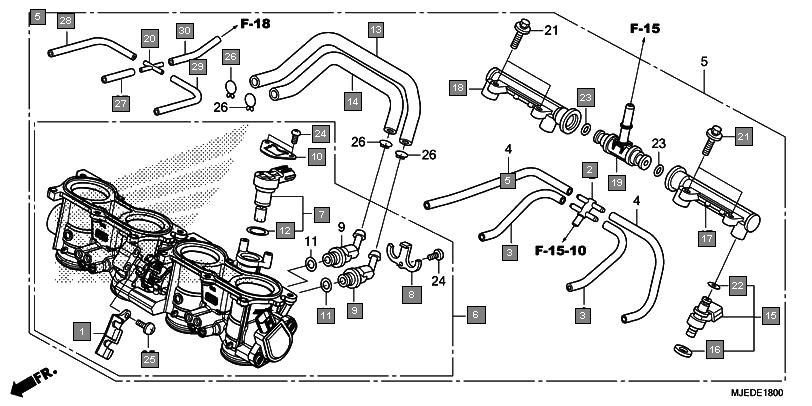

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16169MEE013 | STAY, WIRE | 1 |
| 2 | 16180ME5761 | T-JOINT | 1 |
| 3 | 16196MBWL11 | TUBE | 2 |
| 4 | 16197MFJL01 | TUBE | 2 |
| 5 | 16400MJEL01 | THROTTLE BODY ASSY.(GQ8GB A) | 1 |
| 6 | 16401MJEL01 | THROTTLE BODY ASSY. | 1 |
| 7 | 16431MJPG51 | MOTOR ASSY. | 1 |
| 8 | 16431MFJD01 | PLATE, JOINT | 1 |
| 9 | 16432MFJD01 | JOINT, IDLE AIR CONTROL VALVE | 2 |
| 10 | 16433MEW921 | PLATE, IDLE AIR CONTROL VALVE | 1 |
| 11 | 16434MFJD01 | O-RING | 2 |
| 12 | 16435MFJD01 | O-RING, 17.8X1.9 | 1 |
| 13 | 16440MJED01 | TUBE(A) | 1 |
| 14 | 16441MJED01 | TUBE(B) | 1 |
| 15 | 16450MJED01 | INJECTOR ASSY., FUEL | 4 |
| 16 | 16472KPCD50 | RING, SEAL | 4 |
| 17 | 16610MGCD21 | PIPE, FUEL(A) | 1 |
| 18 | 16620MGCD21 | PIPE, FUEL(B) | 1 |
| 19 | 16630MFJD00 | T-JOINT, FUEL | 1 |
| 20 | 17201MCZ003 | JOINT, FOUR WAY | 1 |
| 21 | 90021MGZD02 | BOLT, SHOULDER | 4 |
| 22 | 91301GGLJ01 | O-RING, 6.3X2.2 | 4 |
| 23 | 91301PLC000 | O-RING, 7.47X3.6 | 2 |
| 24 | 93500040081H | SCREW, PAN, 4X8 | 3 |
| 25 | 938920501218 | SCREW-WASHER, 5X12 | 2 |
| 26 | 9500202139 | CLIP, TUBE(B12.5) | 4 |
| 27 | 950053505520 | TUBE, 3.5X55(95005-35001-20M) | 1 |
| 28 | 950053509520 | TUBE, 3.5X95(95005-35001-20M) | 1 |
| 29 | 950053512520 | TUBE, 3.5X125(95005-35001-20M) | 1 |
| 30 | 950053514020 | TUBE, 3.5X140(95005-35001-20M) | 1 |
