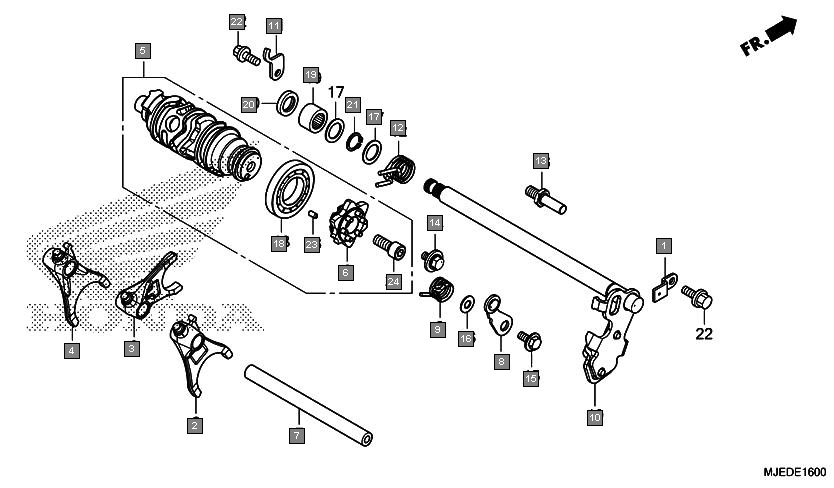

Motorcycles CBR650F CBR650FAJ Engine Gearshift drum
Ref.No. Part No. Description Oty
1 14623MV1000 PLATE, TENSIONER SETTING 1
2 24211MJED00 FORK, R. GEARSHIFT 1
3 24212MJED00 FORK, GEARSHIFT CENTER 1
4 24213MJED00 FORK, L. GEARSHIFT 1
5 24310MJED00 DRUM COMP., GEARSHIFT 1
6 24315MJED00 CENTER COMP., SHIFT DRUM 1
7 24321MAS000 SHAFT, GEARSHIFT FORK 1
8 24430MGZJ00 STOPPER COMP., GEARSHIFT DRUM 1
9 24435MJED00 SPRING, SHIFT DRUM STOPPER 1
10 24610MJED00 SPINDLE COMP., GEARSHIFT 1
11 24612MAL600 PLATE, SPINDLE 1
12 24651MBB000 SPRING, SHIFT RETURN 1
13 24652MGZJ00 PIN, SHIFT RETURN SPRING 1
14 90021MGZJ00 BOLT-WASHER, 6X12 2
15 90023MGZJ00 PIVOT, SHIFT DRUM STOPPER ARM 1
16 90417360000 WASHER, DRUM STOPPER 1
17 90451155000 WASHER, 14MM 2
18 91008MFJD01 BEARING, SPECIAL BALL, 6500 1
19 91106MCF003 BEARING, NEEDLE, 14X22X16 1
20 91203KSP911 OIL SEAL, 14X22X5(ARAI) 1
21 9451014000 CIRCLIP, EXTERNAL, 14MM 1
22 957010601400 BOLT, FLANGE, 6X14 2
23 9622040080 ROLLER, 4X8 1
24 966000802010 BOLT, SOCKET, 8X20 1
