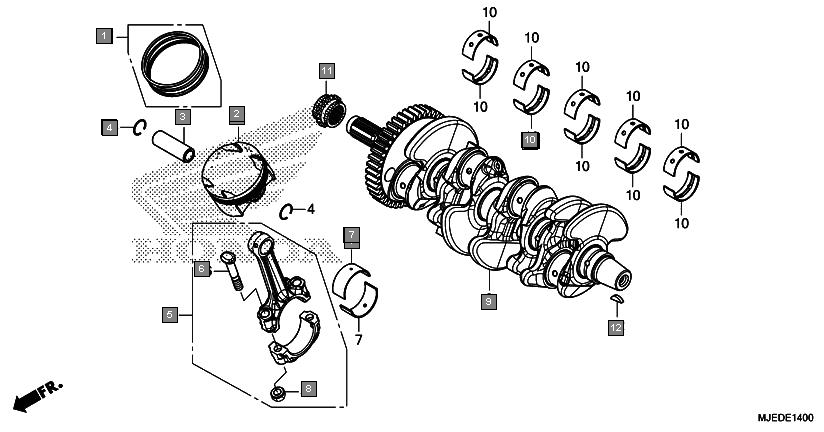

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 13011MJE315 | RING SET, PISTON(STD.) | 4 |
| 2 | 13021MJE315 | RING SET, PISTON(O.S. 0.25) | 4 |
| 3 | 13102MJE305 | PISTON(0.25) | 4 |
| 4 | 13101MJED00 | PISTON | 4 |
| 5 | 13111MFGD00 | PIN, PISTON | 4 |
| 6 | 13112MEE000 | CLIP, PISTON PIN, 16MM | 8 |
| 7 | 13210MJED00 | ROD ASSY., CONNECTING | 4 |
| 8 | 13213ML7020 | BOLT, CONNECTING ROD | 8 |
| 9 | 13215MJED01 | BEARING B, CONNECTING ROD (BLACK) | 8 |
| 10 | 13217MJED01 | BEARING D, CONNECTING ROD (GREEN) | 8 |
| 11 | 13218MJED01 | BEARING E, CONNECTING ROD (YELLOW) | 8 |
| 12 | 13216MJED01 | BEARING C, CONNECTING ROD (BROWN) | 8 |
| 13 | 13214MJED01 | BEARING A, CONNECTING ROD (BLUE) | 8 |
| 14 | 13215ML7000 | NUT, CONNECTING ROD | 8 |
| 15 | 13310MJED00 | CRANKSHAFT COMP. | 1 |
| 16 | 13317MW0003 | BEARING E, CRANKSHAFT(PINK) | 10 |
| 17 | 13313MW0003 | BEARING A, CRANKSHAFT(BLACK) | 10 |
| 18 | 13315MW0003 | BEARING C, CRANKSHAFT(GREEN) | 10 |
| 19 | 13316MW0003 | BEARING D, CRANKSHAFT(YELLOW) | 10 |
| 20 | 13314MW0003 | BEARING B, CRANKSHAFT(BROWN) | 10 |
| 21 | 14312MJED00 | SPROCKET, TIMING(17T) | 1 |
| 22 | 90701HB6010 | KEY, WOODRUFF, 25X14X4 | 1 |
