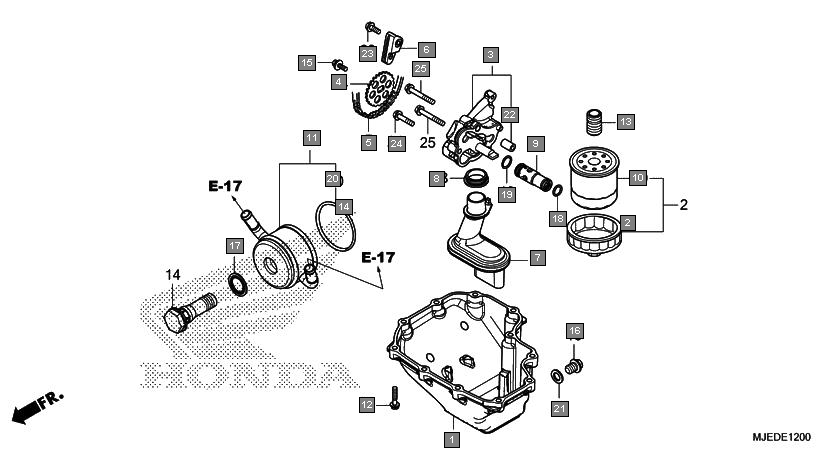

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 11210MJEDB0 | PAN, OIL | 1 |
| 2 | 15010MCEH51 | FILTER SET, OIL | 1 |
| 3 | 15100MJED00 | PUMP ASSY., OIL | 1 |
| 4 | 15134MV9670 | SPROCKET, OIL PUMP DRIVEN(26T) | 1 |
| 5 | 15141MJED01 | CHAIN, OIL PUMP(DID25H-70LE) | 1 |
| 6 | 15147MGED00 | GUIDE COMP. B, OIL PUMP CHAIN | 1 |
| 7 | 15150MJED00 | STRAINER COMP., OIL | 1 |
| 8 | 15154MAT000 | PACKING, OIL STRAINER | 1 |
| 9 | 15220MJED02 | VALVE ASSY., RELIEF | 1 |
| 10 | 15410MFJD01 | CARTRIDGE, OIL FILTER | 1 |
| 11 | 15700MJED01 | COOLER COMP., OIL | 1 |
| 12 | 90010MGZJ00 | BOLT, FLANGE, 6X28(NSHF) | 11 |
| 13 | 90019MGZJ00 | BOSS, OIL FILTER | 1 |
| 14 | 90019MJED00 | BOLT, OIL COOLER | 1 |
| 15 | 90021MGZJ00 | BOLT-WASHER, 6X12 | 1 |
| 16 | 90131883000 | BOLT, DRAIN PLUG, 12X15 | 1 |
| 17 | 90402MFJD01 | WASHER, SEALING, 34.5MM | 1 |
| 18 | 91301PC0003 | O-RING, 13.8X1.9 | 1 |
| 19 | 91313MB0003 | O-RING, 14.7X2.2(ARAI) | 1 |
| 20 | 91354MEJ641 | O-RING, OIL COOLER | 1 |
| 21 | 9410912000 | WASHER, DRAIN PLUG, 12MM | 1 |
| 22 | 9430108140 | DOWEL PIN, 8X14 | 2 |
| 23 | 957010601600 | BOLT, FLANGE, 6X16 | 1 |
| 24 | 957010602800 | BOLT, FLANGE, 6X28 | 1 |
| 25 | 957010604500 | BOLT, FLANGE, 6X45 | 2 |
