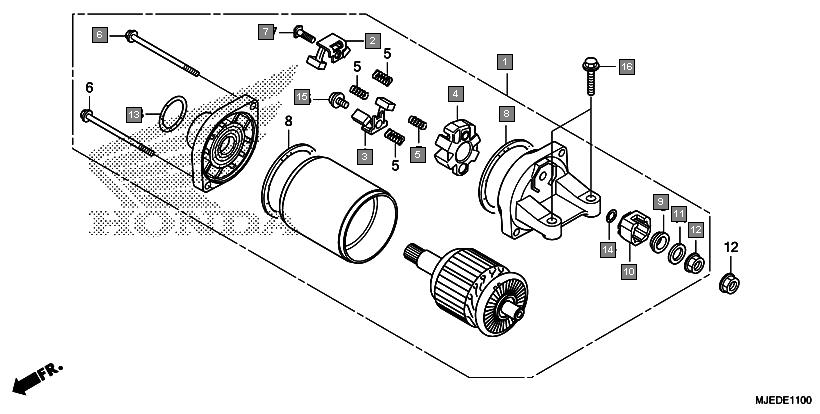

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 31200MJEDB1 | MOTOR ASSY., STARTER(MITSUBA) | 1 |
2 | 31201MEW921 | BRUSH SET A, CARBON | 1 |
3 | 31202MEW921 | BRUSH SET B, CARBON | 1 |
4 | 31203MEW921 | HOLDER, BRUSH | 1 |
5 | 31204MEW921 | SPRING, CARBON BRUSH | 4 |
6 | 31205HP5601 | BOLT, SETTING | 2 |
7 | 31206MEW921 | BOLT, TERMINAL | 1 |
8 | 31207HP5601 | RING | 2 |
9 | 31208MEW921 | INSULATOR | 1 |
10 | 31209MEW921 | STOPPER, TERMINAL | 1 |
11 | 31210MEW921 | WASHER | 1 |
12 | 90071MB0000 | NUT-WASHER, 6MM | 2 |
13 | 91309425003 | O-RING, 24.4X3.1(ARAI) | 1 |
14 | 91320MB0000 | O-RING, 4X2 | 1 |
15 | 938920501208 | SCREW-WASHER, 5X12 | 1 |
16 | 958010602800 | BOLT, FLANGE, 6X28 | 2 |
