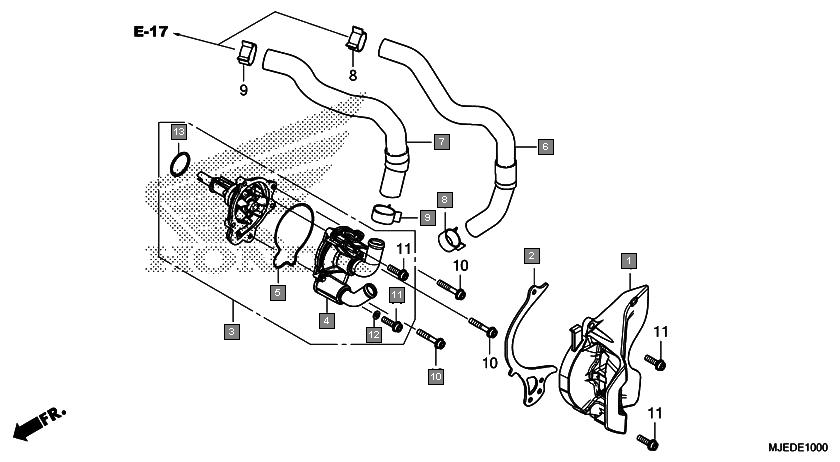

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 11350MJED00 | COVER COMP., L. RR. | 1 |
2 | 11356MJED00 | PLATE, CHAIN GUIDE | 1 |
3 | 19200MJE306 | PUMP COMP., WATER | 1 |
4 | 19220MJEDB0 | COVER COMP., WATER PUMP | 1 |
5 | 19226MJED00 | GASKET, WATER PUMP BODY | 1 |
6 | 19525MJED00 | HOSE A, WATER | 1 |
7 | 19526MJED00 | HOSE B, WATER | 1 |
8 | 19531MGZJ00 | CLIP, WATER HOSE(D27) | 2 |
9 | 19533MGZJ00 | CLIP, WATER HOSE(D30) | 2 |
10 | 90001MJED00 | BOLT, FLANGE SOCKET, 6X35 | 3 |
11 | 90002MGZJ00 | BOLT, FLANGE SOCKET, 6X25 | 4 |
12 | 90463ML7000 | WASHER, SEALING, 6.5MM | 1 |
13 | 91302MB0013 | O-RING, 32.95X2.62(ARAI) | 1 |
