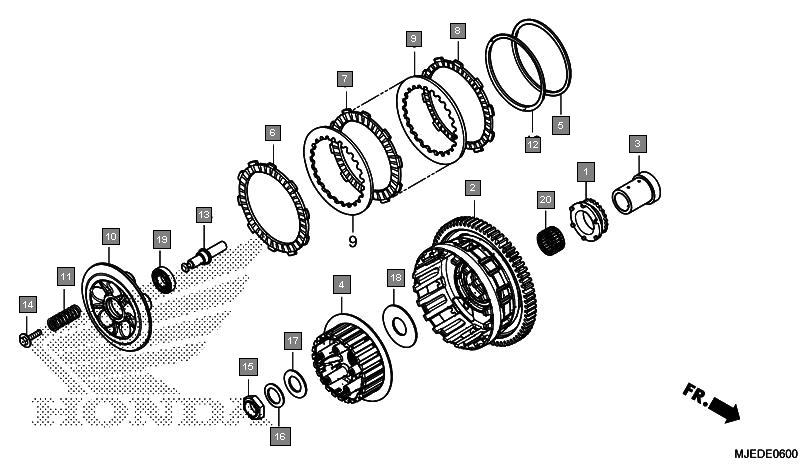

Motorcycles CBR650F CBR650FAJ Engine Clutch
Ref.No. Part No. Description Oty
1 15131MJED01 SPROCKET, OIL PUMP DRIVE(25T) 1
2 22100MJED00 OUTER COMP., CLUTCH(71T) 1
3 22116MJED00 GUIDE, CLUTCH OUTER 1
4 22120MJED00 CENTER, CLUTCH 1
5 22125ML7000 SEAT, JUDDER SPRING 1
6 22201MAE000 DISK, CLUTCH FRICTION 1
7 22201MFJD00 DISK, CLUTCH FRICTION 5
8 22202MAE000 DISK B, CLUTCH FRICTION 1
9 22321ML7000 PLATE, CLUTCH 6
10 22350MCJ000 PLATE, CLUTCH PRESSURE 1
11 22401MJED00 SPRING, CLUTCH 5
12 22402MASE00 SPRING, JUDDER 1
13 22847MJED00 PIN, CLUTCH LIFTER 1
14 90024MAS000 BOLT-WASHER, 6X28 5
15 90231MJED00 NUT, LOCK, 22MM 1
16 90432MM5000 WASHER, SPRING, 22MM 1
17 90451KG4000 WASHER, THRUST, 22X39X2 1
18 90459MM4000 WASHER, 60X25X2 1
19 91009MAS003 BEARING, RADIAL BALL, 16003 1
20 91102MEE003 BEARING B, NEEDLE, 35X41X23.8 (WHITE) 1
