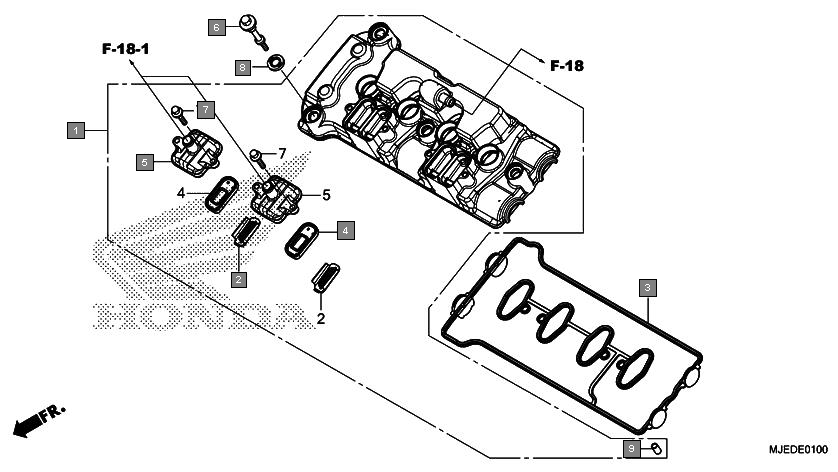

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 12310MJEDB0 | COVER ASSY., CYLINDER HEAD | 1 |
2 | 12341MAT750 | PLATE, PORT(AI) | 4 |
3 | 12391MJED00 | GASKET COMP., CYLINDER HEAD COVER | 1 |
4 | 18601KEA741 | VALVE COMP., REED(ARAI) | 4 |
5 | 18612MJWJ00 | COVER, REED VALVE | 2 |
6 | 90002MY5850 | BOLT, HEAD COVER | 4 |
7 | 90004GHB650 | BOLT, FLANGE, 6X20(NSHF) | 4 |
8 | 90543MV9670 | RUBBER, MOUNTING | 4 |
9 | 9430108140 | DOWEL PIN, 8X14 | 4 |
