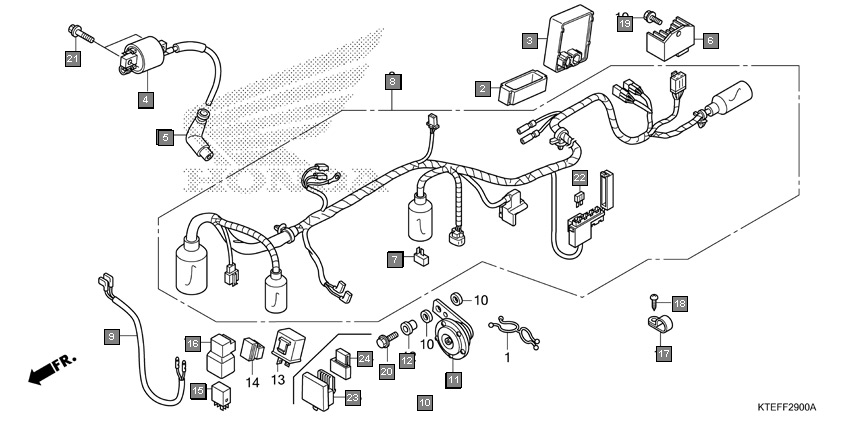

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 30401KWPD21 | CUSHION, C.D.I. UNIT (SHINDENGEN) | 1 |
2 | 30410KTED01 | C.D.I UNIT COMP.,DIGITAL(SHINDENGEN) | 1 |
3 | 30500KTE651 | COIL ASSY., IGNITION(WINGS) | 1 |
4 | 30500KTE601 | COIL ASSY., IGNITION(ANU) | 1 |
5 | 30700KTED02 | CAP ASSY., NOISE SUPPRESSOR (ANU) | 1 |
6 | 30700KTED01 | CAP ASSY., NOISE SUPPRESSOR (MINDA) | 1 |
7 | 31600K14961 | RECTIFIER COMP., REGULATE(STAR ENGINEERS) | 1 |
8 | 31700124008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 |
9 | 32100KTED00 | HARNESS, WIRE | 1 |
10 | 32102KTE600 | SUB CORD | 1 |
11 | 33714KL3620 | RUBBER, TAILLIGHT BRACKET | 2 |
12 | 38110KWF952 | HORN COMP. | 1 |
13 | 38110KTED01 | HORN COMP.(NIKKO) | 1 |
14 | 38117KFE701 | COLLAR, HORN SETTING | 1 |
15 | 38502KWA931 | RELAY COMP., POWER (MICRO ISO 5P)(MULTILINK) | 1 |
16 | 38502KSP910 | RELAY COMP., POWER (MICRO ISO 5P) | 1 |
17 | 38506K23900 | SUSPENSION, POWER RELAY | 1 |
18 | 90628750000 | CLIP(14MM) | 1 |
19 | 9390324320 | SCREW, TAPPING, 4X12 | 1 |
20 | 957010601400 | BOLT, FLANGE, 6X14 | 1 |
21 | 957010602008 | BOLT, FLANGE, 6X20 | 1 |
22 | 960010602000 | BOLT, FLANGE, 6X20 | 2 |
23 | 9820031500 | FUSE, BLADE(15A) | 2 |
24 | 38301K63D21 | RELAY COMP., WINKER (STAR ENGINEERS) | 1 |
25 | 38306KTE650 | SUSPENSION, WINKER RELAY | 1 |
