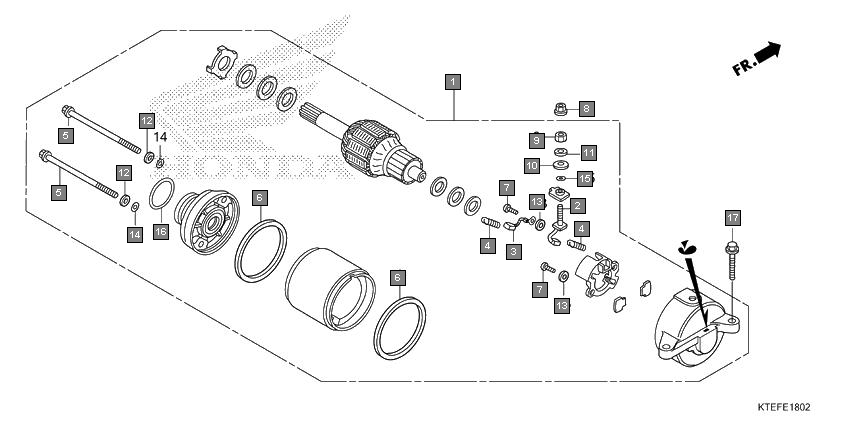

Motorcycles CB Shine CBF125BH Engine Starting motor(cbf125h/cbf125bh)(varroc)
Ref.No. Part No. Description Oty
1 31200KTED01 MOTOR ASSY., STARTER(VARROC) 1
2 31201KTED01 BRUSH SET, TERMINAL(VARROC) 1
3 31202KTED01 BRUSH, CARBON 1
4 31204KTED01 SPRING, BRUSH(VARROC) 2
5 31205KTED01 BOLT, TIE(VARROC) 2
6 31207KTED01 SEAL, YOKE 2
7 31208KTED01 SCREW, 4X10 3
8 90071MB0000 NUT-WASHER, 6MM 1
9 90201KTED01 NUT, 6MM 1
10 90401KTED01 WASHER, PLAIN 1
11 90402KTED01 WASHER, SPRING 1
12 90403KTED01 WASHER, PLAIN 2
13 90404KTED01 WASHER, SPRING 3
14 91301KTED01 O-RING(TIE BOLT) 2
15 91302KTED01 O-RING(TERMINAL) 1
16 91303KTED01 O-RING(MOUNTING) 1
17 957010602200 BOLT, FLANGE, 6X22 2
