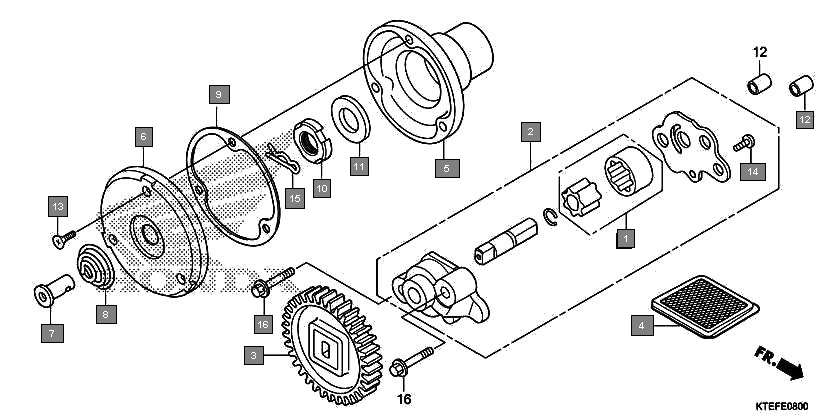

Motorcycles CB Shine CBF125BH Engine Oil pump
Ref.No. Part No. Description Oty
1 15022KTE650 ROTOR SET B, OIL PUMP 1
2 15021GF6000 ROTOR SET, OIL PUMP 1
3 15021KTE650 ROTOR SET A, OIL PUMP 1
4 15100KTE650 PUMP ASSY., OIL 1
5 15130KRM840 GEAR COMP., OIL PUMP DRIVE (34T) 1
6 15421KSP910 SCREEN, OIL FILTER 1
7 15430KSP910 ROTOR, OIL FILTER 1
8 15436KRM840 CAP, OIL FILTER ROTOR 1
9 15441KCS650 THROUGH, OIL 1
10 15446107000 SPRING, OIL THROUGH 1
11 15459KWK900 GASKET, OIL FILTER CAP 1
12 90231KRM840 NUT, LOCK, 14MM 1
13 90432KPTA00 WASHER, 14.2X26X3 1
14 90702KRM840 DOWEL PIN, 8X14 2
15 93700050120A SCREW, OVAL, 5X12 3
16 9390134120 SCREW, TAPPING, 4X8 1
17 9425108000 PIN, LOCK, 8MM 1
18 957010603500 BOLT, FLANGE, 6X35 2
