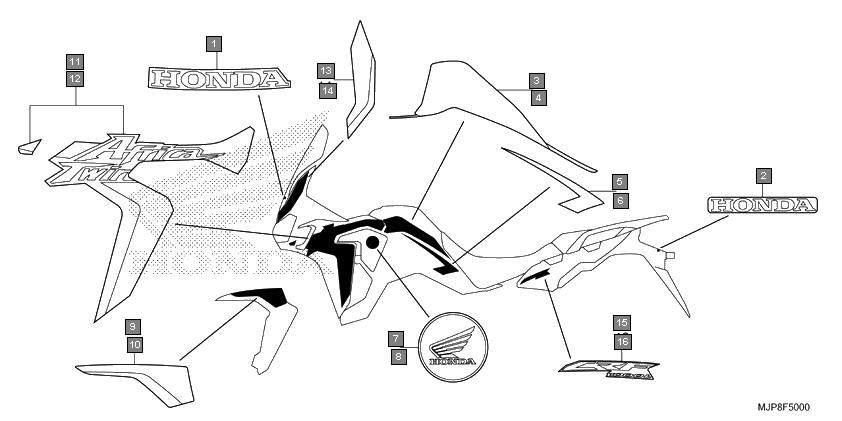

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 86101MJPG50ZA | MARK, HONDA(65MM) *TYPE1* | 1 |
2 | 86102MJPG50ZA | MARK, HONDA(55MM) *TYPE1* | 1 |
3 | 86171MJPF50ZA | STRIPE A, R. FUEL TANK *TYPE1* | 1 |
4 | 86172MJPF50ZA | STRIPE A, L. FUEL TANK *TYPE1* | 1 |
5 | 86173MJPF50ZA | STRIPE B, R. FUEL TANK *TYPE1* | 1 |
6 | 86174MJPF50ZA | STRIPE B, L. FUEL TANK *TYPE1* | 1 |
7 | 86211MJPG50 | BADGE, R. PRODUCT | 1 |
8 | 86212MJPG50 | BADGE, L. PRODUCT | 1 |
9 | 86611MJPF50ZA | STRIPE, R. FR. FENDER *TYPE1* | 1 |
10 | 86612MJPF50ZA | STRIPE, L. FR. FENDER *TYPE1* | 1 |
11 | 86641MJPF50ZA | STRIPE A, R. MIDDLE COWL *TYPE1* | 1 |
12 | 86642MJPF50ZA | STRIPE A, L. MIDDLE COWL *TYPE1* | 1 |
13 | 86643MJPF50ZA | STRIPE B, R. MIDDLE COWL *TYPE1* | 1 |
14 | 86644MJPF50ZA | STRIPE B, L. MIDDLE COWL *TYPE1* | 1 |
15 | 86831MJPG50ZA | MARK, R. SIDE COVER *TYPE3* | 1 |
16 | 86832MJPG50ZA | MARK, L. SIDE COVER *TYPE3* | 1 |
