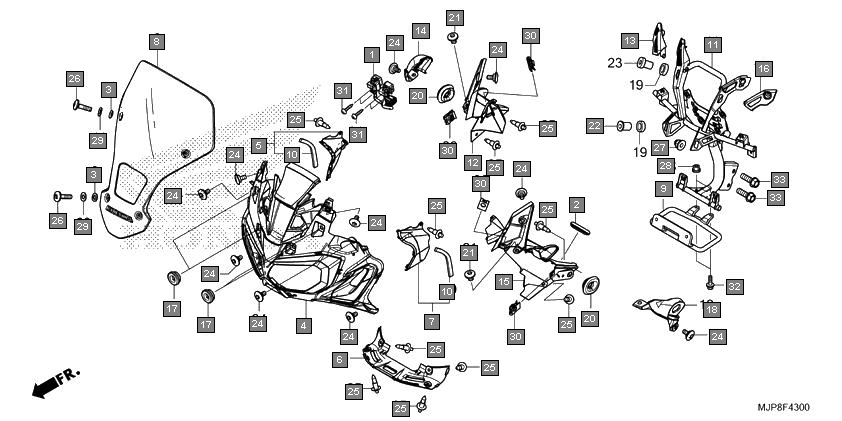

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 35240MJPG81 | SWITCH ASSY., G MODE & RR. ABS CANCEL | 1 |
2 | 39119MJG640 | GROMMET, AUDIO BOX | 1 |
3 | 64205166610 | WASHER, SCREEN SETTING | 4 |
4 | 64211MJPG50 | COVER, FR. | 1 |
5 | 64220MJPG50 | COVER ASSY., R. FR. INNER | 1 |
6 | 64221MJPG50 | SPOILER, FR. | 1 |
7 | 64230MJPG50 | COVER ASSY., L. FR. INNER | 1 |
8 | 64250MJPG50ZA | WINDSCREEN SET(WL) *TYPE1* | 1 |
9 | 64305MJPMF0 | STAY, FR. NUMBER PLATE | 1 |
10 | 64312MJPG50 | SEAL B, MIDDLE COWL | 2 |
11 | 64501MJPG50 | STAY COMP., FR. COWL | 1 |
12 | 64531MJPG80 | COVER, R. INNER PANEL | 1 |
13 | 64532MJPG50 | COVER, R. COWL STAY | 1 |
14 | 64541MJPG50 | COVER, R. FR. WINKER | 1 |
15 | 64581MJPG50 | COVER, L. INNER PANEL | 1 |
16 | 64582MJPG50 | COVER, L. COWL STAY | 1 |
17 | 64586MBWD20 | RUBBER, AIR DUCT COVER SETTING | 4 |
18 | 64591MJPG50 | COVER, L. FR. WINKER | 1 |
19 | 83551GE2000 | GROMMET, AIR CLEANER CASE | 2 |
20 | 90106MJPG50 | BOLT, SPECIAL, 6X8 | 2 |
21 | 90111KW3003 | NUT, COWL SETTING, 5MM | 4 |
22 | 90114MGE000 | SCREW, SPECIAL, 5X11 | 10 |
23 | 90116SP0003 | CLIP, BUMPER SEAL | 10 |
24 | 90118MJPG50 | SCREW, PAN, 5X20(SUS) | 4 |
25 | 90161MM8000 | NUT, FLANGE CAP, 8MM | 1 |
26 | 90301MG3000 | NUT, U, 6MM | 2 |
27 | 90504964000 | WASHER, THRUST, 5MM | 4 |
28 | 90677KAN961 | NUT, CLIP, 5MM | 4 |
29 | 9390122320 | SCREW, TAPPING, 3X12 | 4 |
30 | 957010601400 | BOLT, FLANGE, 6X14 | 2 |
31 | 957010802507 | BOLT, FLANGE, 8X25 | 2 |
