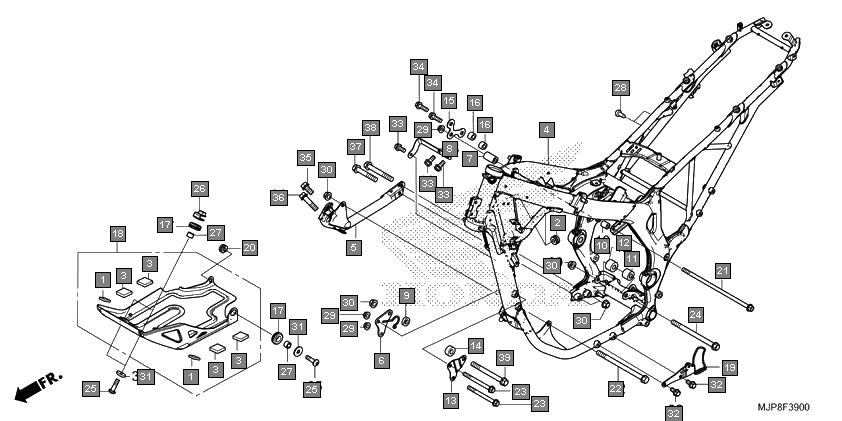

Motorcycles Africa Twin CRF1000DH Frame Frame body
Ref.No. Part No. Description Oty
1 17225MAH610 RUBBER B, CUSHION 2
2 17245107010 RUBBER, AIR CLEANER CASE MOUNTING 2
3 17515KFB840 RUBBER, TANK GUARD 4
4 50100MJPG50ZA BODY COMP., FRAME *NH303M* MAT AXIS GRAY METALLIC 1
5 50170MJPG50ZA PIPE COMP., R. LOWER *NH303M* MAT AXIS GRAY METALLIC 1
6 50351MJPG50ZA PLATE, R. FR. ENGINE HANGER *NH167MU* IRON NAIL SILVER METALLIC-U 1
7 50352MJPG50 COLLAR C, R. ENGINE HANGER 1
8 50353MJPG50 PLATE, FR. HEAD ENGINE HANGER 1
9 50354MJPG50 COLLAR A, ENGINE HANGER 1
10 50355MJPG50 COLLAR B, ENGINE HANGER 1
11 50356MJPG50 COLLAR D, ENGINE HANGER 1
12 50357MJPG50 COLLAR F, ENGINE HANGER 1
13 50358MJPG50ZA PLATE, L. FR. ENGINE HANGER *NH167MU* IRON NAIL SILVER METALLIC-U 1
14 50359MJPG50 COLLAR A, L. ENGINE HANGER 1
15 50361MJPG50ZA PLATE, R. RR. ENGINE HANGER UPPER*NH303M* MAT AXIS GRAY METALLIC 1
16 50362MJPG50 COLLAR E, ENGINE HANGER 2
17 52491MCA000 GROMMET, MOTOR MOUNTING 3
18 64440MJPG60 PLATE COMP., SKID 1
19 64450MJPG50 BRACKET, SKID PLATE 1
20 80101283000 RUBBER, RR. FENDER CUSHION 1
21 90102MJPG50 BOLT, FLANGE, 8X217 1
22 90103MY1000 BOLT, FLANGE, 10X153 1
23 90113KT0670 BOLT, FLANGE, 8X87 2
24 90116KW3000 BOLT, FLANGE, 10X138 1
25 90128KL4000 BOLT, SPROCKET FIXING 3
26 90321MJPG60 NUT, CLIP, 8MM 2
27 90512MJPG60 COLLAR, 8.5X14X9 3
28 90841001000 SCREW, RIVET, 2
29 9405008080 NUT, FLANGE, 8MM 3
30 9405010080 NUT, FLANGE, 10MM 5
31 9410108000 WASHER, PLAIN, 8MM 3
32 963000801607 BOLT, FLANGE, 8X16 2
33 963000801808 BOLT, FLANGE, 8X18 3
34 963000802508 BOLT, FLANGE, 8X25 2
35 963001002008 BOLT, FLANGE, 10X20 1
36 963001004008 BOLT, FLANGE, 10X40 1
37 963001006008 BOLT, FLANGE, 10X60 1
38 963001007508 BOLT, FLANGE, 10X75 1
39 964001010008 BOLT, FLANGE, 10X100 1
