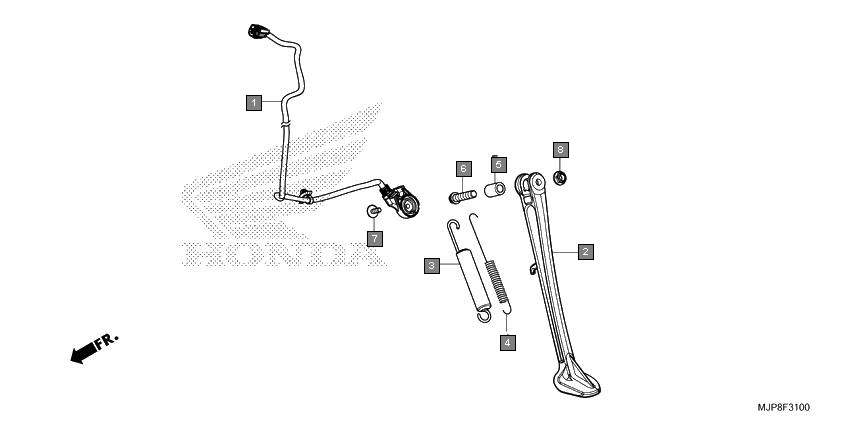

Motorcycles Africa Twin CRF1000DH Frame Side stand
Ref.No. Part No. Description Oty
1 35700MJPG51 SWITCH ASSY., SIDE STAND 1
2 50530MJPG50 BAR, SIDE STAND 1
3 50531GGK000 SPRING ASSY., SIDE STAND 1
4 50542KCM620 SUB SPRING, SIDE STAND 1
5 50601MJPG50 COLLAR, SIDE STAND 1
6 90105MJPG50 BOLT, SIDE STAND PIVOT 1
7 90147MCE950 BOLT, SPECIAL, 6X16 1
8 90203MF9710 NUT, SIDE STAND 1
