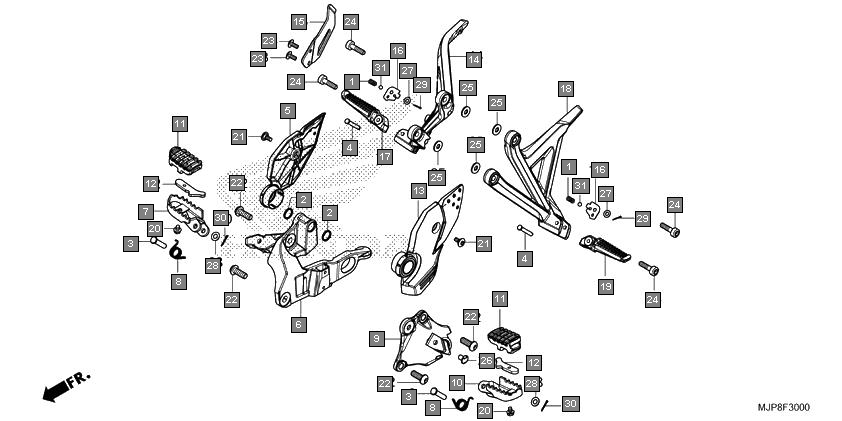

Motorcycles Africa Twin CRF1000DH Frame Step
Ref.No. Part No. Description Oty
1 28333300000 SPRING, KICK STARTER STOPPER 2
2 46525KK0003 DUST SEAL, 17X20X2.5 2
3 50603033010 PIN, STEP BAR JOINT 2
4 50603MFJD00 PIN, STEP JOINT 2
5 50607MJPG50 GUARD, R. HEEL 1
6 50615MJPG50ZA BRACKET, R. STEP MAT BLACK(#15-#20) *NH105* 1
7 50616MJPG50 STEP COMP., R. 1
8 50617KFB840 SPRING, STEP RETURN 2
9 50625MJPG50ZA BRACKET COMP., L. STEP MAT BLACK(#15-#20)*NH105* 1
10 50642MJPG50 STEP COMP., L. 1
11 50661MJPG50 RUBBER, MAIN STEP 2
12 50662MJPG50 PLATE, STEP RUBBER SETTING 2
13 50707MJPG50 GUARD, L. HEEL 1
14 50715MJPG50ZA HOLDER, R. PILLION STEP MAT BLACK(#15-#20)*NH105* 1
15 50716MJPG50 GUARD, PILLION HEEL 1
16 50718KT7761 PLATE, PILLION STEP CLICK 2
17 50720KT7761 BAR, R. PILLION STEP 1
18 50725MJPG50ZA HOLDER, L. PILLION STEP MAT BLACK(#15-#20) *NH105* 1
19 50730KT7761 BAR, L. PILLION STEP 1
20 90112KWT900 BOLT, FLANGE, 6X8 2
21 90114MGED00 BOLT, SPECIAL, 6X15 2
22 90118MJNA00 BOLT, SOCKET, 10X28 4
23 90118MR1000 SCREW, PAN, 6X14 2
24 90155MBL610 BOLT, SOCKET, 8X32 4
25 90526GB0930 WASHER, 8.5X20 4
26 90656MGH641 CLIP, BRUSH 1
27 9410106000 WASHER, PLAIN, 6MM 2
28 9410208000 WASHER, PLAIN, 8MM 2
29 9420116120 PIN, SPLIT, 1.6X12 2
30 9420120150 PIN, SPLIT, 2.0X15 2
31 9621108000 BALL, STEEL, #8(1/4) 2
